Used XCMG ZL50GN Wheel Loader – Heavy Duty, Reliable

Name: Used XCMG ZL50GN Wheel Loader – Heavy Duty, Reliable - Taihongmachinery
Price: 17900.00 USD
Availability: InStock

1-2 Unit$18,900

>=3 Units$17,900

（Price is FOB . Contact WhatsApp for CIF price & shipping cost.）

Used Wheel Loader, XCMG Wheel Loader, Wheel Loader – Heavy duty ZL50GN model. Reliable performance for quarry, construction, and material handling. Ready to work. Request a quote today.

Brand	XCMG
Country of Origin	China
Year	2025
Model Number	ZL50GN
Working Hours	800H

Categories: Loader

Tags: Construction Machinery, front end loader, heavy duty equipment, Used XCMG ZL50GN wheel loader, wheel loader, XCMG ZL50GN

Inquire now

Product Categories

John

Business Manager

Call

Inquire now

Product Specifications

Specification	Value
Operating Weight	17,130 – 18,000 kg (37,765 – 39,683 lb)
Rated Load Capacity	5,000 – 5,500 kg (11,023 – 12,125 lb)
Bucket Capacity (Standard)	3.0 – 3.2 m³ (3.9 – 4.2 yd³)
Bucket Capacity Range	2.5 – 4.5 m³ (3.3 – 5.9 yd³)
Maximum Breakout Force	170 – 175 kN (38,220 – 39,340 lbf)
Maximum Traction Force	160 – 165 kN (35,970 – 37,090 lbf)
Tipping Load	15,000 kg (33,069 lb)
Lifting Capacity	≥7,500 kg (16,535 lb)
Engine Model	Weichai WD10G220E21 / WD10G220E23
Engine Type	In-line 6-cylinder, turbocharged, direct injection
Rated Power	162 kW (217 hp) at 2,000 – 2,400 rpm
Displacement	9.726 L (593 in³)
Maximum Torque	860 Nm (634 ft·lbf)
Emission Standard	China Stage II / Tier 2
Transmission Type	Planetary powershift
Gears	2F / 1R or 4F / 4R (variant dependent)
Max Travel Speed	38 – 41 km/h (23.6 – 25.5 mph)
Overall Length	8,110 – 8,350 mm (26.6 – 27.4 ft)
Overall Width	2,966 – 3,050 mm (9.7 – 10.0 ft)
Overall Height	3,400 – 3,515 mm (11.2 – 11.5 ft)
Wheelbase	3,200 – 3,300 mm (10.5 – 10.8 ft)
Ground Clearance (Min.)	450 mm (17.7 in)
Maximum Dumping Height	3,090 – 3,780 mm (10.1 – 12.4 ft)
Dumping Reach	1,100 – 1,250 mm (3.6 – 4.1 ft)
Minimum Turning Radius	5,925 – 6,640 mm (19.4 – 21.8 ft)
Gradeability	30°
Articulation Angle	38°
Fuel Tank Capacity	270 – 300 L (71.3 – 79.3 US gal)
Hydraulic Tank Capacity	240 L (63.4 US gal)
Hydraulic System Pressure	18 – 25 MPa (2,610 – 3,625 psi)
Total Hydraulic Cycle Time	≤ 10.5 – 11.0 seconds
Tire Size	23.5-25-16PR

Product Pictures

Expert Inspection Report

Positioning
The XCMG ZL50GN is a 5-tonne wheel loader, successor to the popular ZL50G. It is widely used in ports, mines, construction sites, quarries, and coal logistics. In the used market, it offers excellent value – typically 30–40% cheaper than Caterpillar 950 series or Komatsu WA380.

Key Specs
Operating weight: 17,130–17,500 kg. Rated load: 5,000 kg. Standard bucket: 3.0–3.2 m³ (optional 2.5–5.0 m³). Weichai WD10G220E23 engine, 162 kW (217 hp). Breakout force: 170–175 kN. Traction force: 160–165 kN. Total hydraulic cycle time ≤11 seconds. Max travel speed: 38 km/h. Max dumping height: 3,090–3,780 mm.

Real-World Reliability
In an African underground coal mine, a ZL50GN ran over 3,000 hours without failure under dusty, high-intensity conditions. The customer praised its durability and low maintenance costs. In Nigerian quarries, used units also prove reliable, easy to maintain, and cost-effective for rental fleets.

Operator & Maintenance

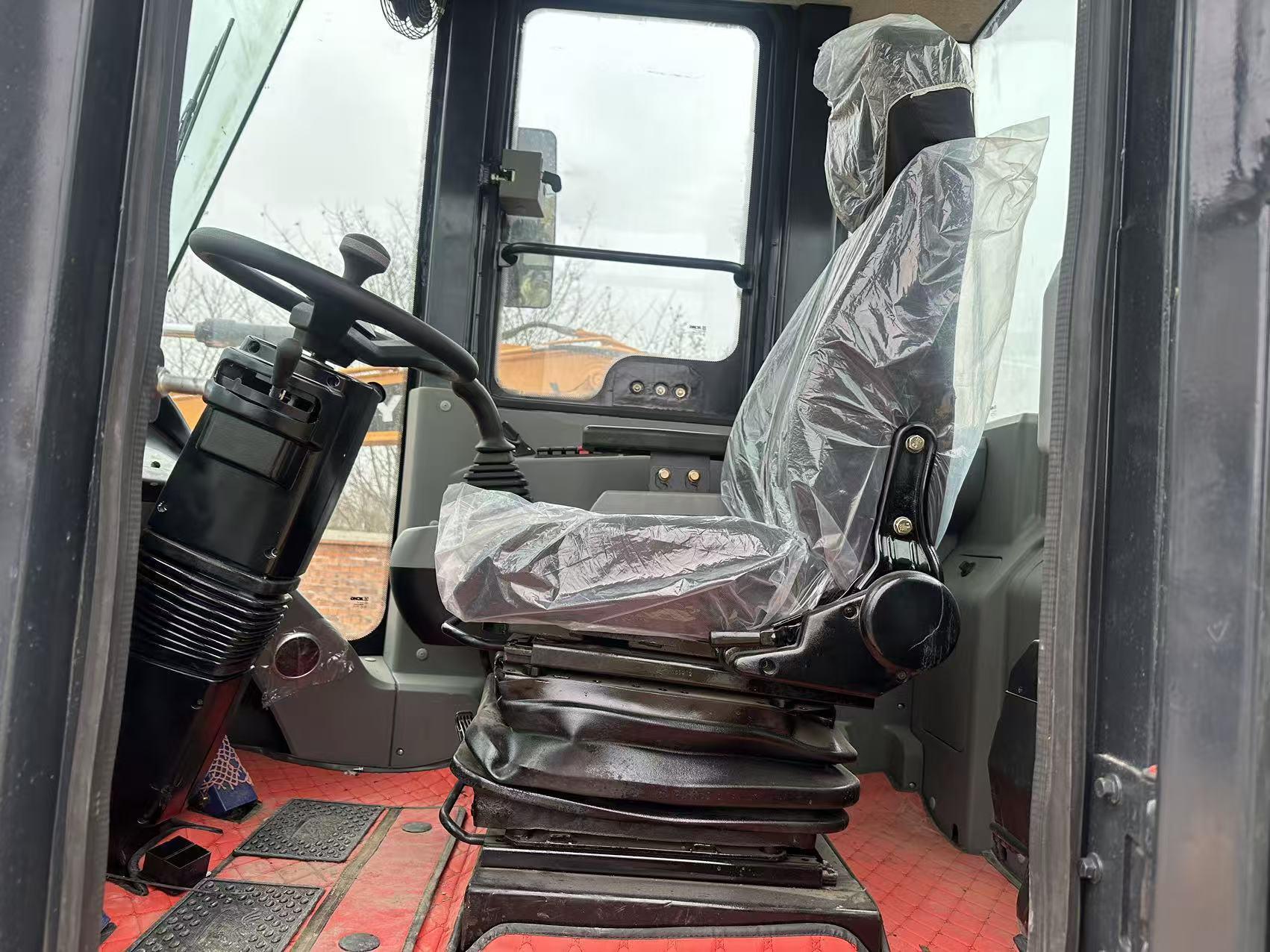

The cab has a unibody frame, sound insulation, standard A/C, and single-lever pilot controls. Centralized test points and a large side‑opening engine hood make daily service quick and easy.

Verdict for Used Buyers
The ZL50GN is a strong choice for medium‑to‑heavy duty work. Inspect the hydraulic system, transmission, cooling stack, and pivot pins before purchase. Request service records. A well‑maintained unit delivers thousands of reliable hours at a fraction of the cost of Western brands.

Company Description

Taihongmachinery (TH Engineering Equipment Limited) is a premier global supplier specializing in the export of high-quality, pre-owned heavy construction equipment.
Our company sells Caterpillar,Komatsu,Sany,Doosan,Hyundai,Hitachi,Volvo,Kubota used excavators, used bulldozers, used loaders, used graders, used cranes, used rollers, etc. With a strategic focus on the international trade of used excavators, we have established ourselves as a cornerstone of reliability for clients across Southeast Asia, South Asia, the Middle East, Africa, and South America.

Shipping & Delivery Policy

At Taihong Machinery, we provide flexible global logistics solutions for all our used heavy machinery.

Shipping Method: We recommend working with professional international freight forwarders specializing in heavy equipment (RORO or Flat Rack container shipping).

Flexibility: We are happy to work with your preferred freight forwarder. If you do not have one, we can leverage our network of reliable, certified global logistics partners to provide competitive shipping quotes to your nearest port.

Preparation: All machines undergo professional cleaning and safety inspections prior to loading to ensure they meet international shipping regulations.

Documentation: We provide all necessary export documentation, including Bills of Lading, Packing Lists, and Commercial Invoices, to ensure smooth customs clearance at the destination.

Return & Refund Policy

We provide a detailed pre-shipment inspection report and live video call to confirm machine condition. Returns are generally not accepted, but if the machine does not match the inspection report, we will negotiate a resolution.

Inspection: We encourage all buyers to conduct a thorough inspection of the machine, either in person at our yard in China or via live video consultation with our technicians.

Pre-shipment Verification: Before the machine leaves our yard, we provide a full functional test report and live video proof of the engine, hydraulic, and structural condition. Once the buyer confirms the machine status and the machine is loaded for export, we do not accept returns.

Warranty: All equipment is sold in “as-is” condition. We are committed to transparency and will disclose all known technical details prior to purchase.

Support: Should any issues arise during the shipping process, we will provide full support in communicating with your insurance provider and the shipping line.

Success Cases

The XCMG ZL50GN is a 5-tonne class wheel loader manufactured since 2017, representing XCMG‘s cross-generation product developed on the basis of globalized technology resources. The machine is designed for high-intensity, heavy-load operations in ports, mines, engineering construction sites, aggregate yards, and coal logistics.

Core Specification Table

Specification	Value
Rated Operating Load	5,000 – 5,500 kg (11,023 – 12,125 lb)
Operating Weight	17,150 – 17,800 kg (37,810 – 39,243 lb)
Standard Bucket Capacity	3.0 – 3.2 m³ (3.9 – 4.2 yd³)
Bucket Capacity Range (Optional)	2.5 – 4.5 m³ (3.3 – 5.9 yd³)
Maximum Breakout Force	170 – 175 kN (38,220 – 39,340 lbf)
Maximum Tractive Force	160 – 165 kN (35,970 – 37,090 lbf)
Lifting Capacity	≥7,500 kg (16,535 lb)
Engine Model	Weichai WD10G220E21 / WD10G220E23
Rated Power	162 kW (217 – 220 hp) at 2,000 – 2,200 rpm
Engine Displacement	9.726 L (593 in³)
Maximum Torque	860 Nm (634 ft·lbf)
Transmission Type	Planetary powershift, 4 forward / 4 reverse
Max Travel Speed (Forward II)	38 – 41 km/h (23.6 – 25.5 mph)
Total Hydraulic Cycle Time	≤ 10.5 seconds
Boom Lifting Time	≤ 6 seconds
Maximum Dumping Height	3,090 – 3,780 mm (10.1 – 12.4 ft)
Dumping Reach	1,100 – 1,250 mm (3.6 – 4.1 ft)
Wheelbase	3,300 mm (10.8 ft)
Minimum Turning Radius (over tires)	5,925 ± 50 mm (19.4 ft)
Articulation Angle	38°
Gradeability	30°
Fuel Tank Capacity	300 L (79.3 US gal)
Tire Size	23.5-25-16PR (20-ply mining grade)

Note: An extended wheelbase of 3,300 mm significantly enhances stability during high-load operations and reduces tipping risks on uneven terrain, giving the ZL50GN superior structural strength among products in its class. The bucket incorporates an automatic high-position dumping and leveling function, improving working efficiency and reducing material spillage during operations.

The ZL50GN is engineered for fuel efficiency, with the Weichai engine achieving a minimum fuel consumption ratio of ≤215 g/kW·h. Industry comparisons indicate the ZL50GN consumes approximately 1.67 liters less per hour compared to similar competing products, offering modest but meaningful long-term savings.

Fuel Consumption Estimates:

Under normal operating conditions, the ZL50GN consumes approximately 13–16 litres (3.4–4.2 US gal) per hour. Based on a diesel price of approximately USD $0.90–$1.10 per litre in global markets, the hourly fuel cost ranges from USD $11.70 to $17.60.

Hourly Operating Cost Breakdown:

Cost Component	Estimated Amount
Fuel (diesel ~$0.90–1.10/L)	$11.70 – $17.60 per hour
Routine Maintenance	~$4 – $6 per hour
Total Hourly Operating Cost	~$16 – $24

With a 300-litre (79.3 US gal) fuel tank, operators can expect approximately 18–23 hours of continuous operation per fill, reducing downtime for refueling on busy job sites. For a machine operating 2,000 hours per year, annual fuel cost would be approximately USD $23,400–$35,200, placing the ZL50GN in the competitive range among 5-tonne wheel loaders.

The ZL50GN has demonstrated strong reliability across multiple global markets. In an African underground coal mine, a ZL50GN operated continuously for over 3,000 hours without any failure under dusty, high-intensity conditions, becoming the “mainstay” in the coal transfer process and effectively ensuring production efficiency. The equipment manager stated: “The XCMG ZL50GN has demonstrated remarkable durability and uptime, operating stably for over 3000 hours under high-intensity conditions without any malfunctions, significantly reducing maintenance costs and improving production efficiency. XCMG is a trustworthy partner.”

Common Issues to Inspect on Used Units:

Issue Category	Symptoms	Common Causes
Hydraulic System	Oil leakage, slow movement, sluggish lift performance	Worn seals, loose fittings, damaged hoses, low hydraulic pressure due to pump wear or clogged filter
Steering System	Heavy or jerky steering, hesitation, loss of hydraulic assist	Worn steering hydraulic pump, clogged steering filter, faulty steering control valve (priority valve), steering cylinder internal leakage
Transmission	Weak movement in one gear, delayed engagement	Torque converter issues, travel pump problems, faulty shift splitter valve
Engine	Overheating, poor fuel efficiency, hard starting	Malfunctioning cooling system, clogged radiator, dirty air filter, low coolant level
Cooling System	Engine temperature rise under heavy load	Debris buildup between radiator and oil cooler fins (requires regular cleaning every 50 hours)

Specific Hydraulic System Issues: Hydraulic fluid leakage is one of the most frequent problems with XCMG wheel loaders. Leakage can occur at various points in the system, such as hoses, fittings, and cylinders. Worn-out seals are often the result of long-term use and high-pressure operation. Loose fittings may be due to improper installation or vibration during operation. Damaged hoses can be caused by abrasion, punctures, or aging.

Specific Steering System Issues: When an XCMG loader lacks steering power, the root cause is almost always hydraulic. The steering system relies on precise oil flow at pressures between 160–210 bar. A drop of only 15% makes the steering feel heavy or jerky. The most common culprits include a worn steering hydraulic pump (internal clearances increase and flow drops), a clogged steering filter, a faulty steering control valve, or steering cylinder internal leakage.

Transmission Issues: If the loader is weak or not moving in one gear while other gears are normal, problems with the torque converter, travel pump, pressure reducing valve, and other common oil circuits and components should be investigated.

Used Buyer Inspection Checklist:

Check all hydraulic hoses and cylinder seals for signs of weeping or active leakage
Test steering responsiveness at both idle and full rpm; listen for whining or slow response
Verify all 4 forward and 4 reverse gears through a complete shift sequence
Inspect the cooling system radiator and oil cooler fins for debris accumulation
Request service records for regular oil changes, filter replacements, and cooling system cleaning
Look for evidence of overheating (discolored coolant, swollen hoses)

The XCMG ZL50GN represents excellent value in the used equipment market, typically priced significantly lower than comparable Western brands with similar age and hours. Current market data from 2025–2026 shows the following price ranges:

Condition	Year	Hours	Approximate Price (USD)
Nearly new / low-hour	2025	100–200 hours	$18,000 – $22,000
Good condition	2023–2024	600–1,300 hours	$15,000 – $20,000
Average used	2019–2022	3,000–7,000 hours	$12,000 – $18,000
Higher-hour / well-used	2014–2018	7,000+ hours	$10,000 – $14,000

Sources: Machineryline, Machinio, Alibaba dealer listings

Example Listings:

A 2025 ZL50GN with 100 hours listed at USD $18,000 FOB Shanghai
A 2024 ZL50GN with 200 hours listed from China
A 2023 ZL50GN with 600 hours in “good working condition”

Key Factors Affecting Used Price:

Factor	Impact on Price
Hours	The most significant factor. Units under 500 hours command near-new pricing; those above 3,000–5,000 hours see accelerated depreciation
Year of Manufacture	The ZL50GN has been produced since 2017; newer units generally have improved components and lower wear
Bucket Configuration	Units with the optional 3.2 m³ bucket (standard) or light material buckets up to 4.5 m³ offer different value based on application needs
Maintenance History	A documented service history can add 10–15% to selling price compared to unknown-history machines
Geographic Location	Machines located in major trading hubs (Shanghai, Dubai, Rotterdam) typically command premium prices due to easier inspection and shipping logistics

Important Note on Condition:
When evaluating a used ZL50GN, the asking price alone is not sufficient. Request the machine‘s service records, including regular oil changes, filter replacements, and cooling system cleaning. The machine’s hydraulic system and steering components should be tested under load. Low-hour, well-maintained units represent the best value, as they typically deliver reliable performance with minimal immediate repair costs.

The XCMG ZL50GN is highly versatile, with diversified configurations and complete attachments that comprehensively adapt to construction needs in different regions and under different working conditions.

Attachment Compatibility:

Attachment Category	Examples	Hydraulic Requirement	Primary Applications
Buckets	Standard GP bucket (3.0 m³), large rock bucket (3.0 m³), light material bucket (4.5 m³)	None (mechanical)	General digging, material handling, rock excavation
Material Handling	Pallet forks, bale spears, utility forks	None (mechanical)	Lifting pallets, hay bales, construction materials
Earthmoving	Augers, trenchers, backhoes	Standard flow	Digging post holes, trenching for utilities
Grading & Site Prep	Land levelers, box scrapers, angle brooms	Standard flow	Final grading, site cleanup
Demolition	Hydraulic breakers, rotary cutters	Standard to high flow	Concrete breaking, land clearing

Standard vs. Optional Buckets:

Bucket Type	Capacity	Best Suited For
Standard GP Bucket	3.0 – 3.2 m³	General purpose, loose material, aggregate handling
Large Rock Bucket	3.0 m³	Heavy-duty rock excavation, mining, quarry work
Light Material Bucket	4.5 m³	Light aggregates, wood chips, snow, low-density materials

The bucket teeth feature a toothholder and sleeve design, making them easier to replace when worn. The cutting blade and bucket edge are equipped with a protection device for optimum damage and shock tolerance. The bucket incorporates an automatic high-position dumping and leveling function, which improves working efficiency and reduces the splashing of material during operations.

Best Applications for ZL50GN:

Industry	Application
Construction Sites	Earthmoving, material loading, site preparation
Quarries & Aggregate Yards	Rock loading, crusher feeding, stockpile handling
Ports & Logistics	Bulk material handling, ship loading/unloading
Coal Handling Facilities	Coal stockpiling, transfer operations
Mines	Heavy-load excavation, haul road maintenance
Agricultural	Bulk material handling, feed and grain loading

The ZL50GN‘s extended wheelbase of 3,300 mm provides superior stability for high-load operations, and the 38° articulation angle enables good maneuverability in confined spaces. For used buyers, verify that the bucket type matches your intended material density, and inspect the Bob-Tach (quick-coupler) mechanism for wear if the machine is equipped with one. Request the machine’s service records for the hydraulic system to ensure consistent performance.
