Used CAT D6G Bulldozer for Sale – Low Price, High Performance

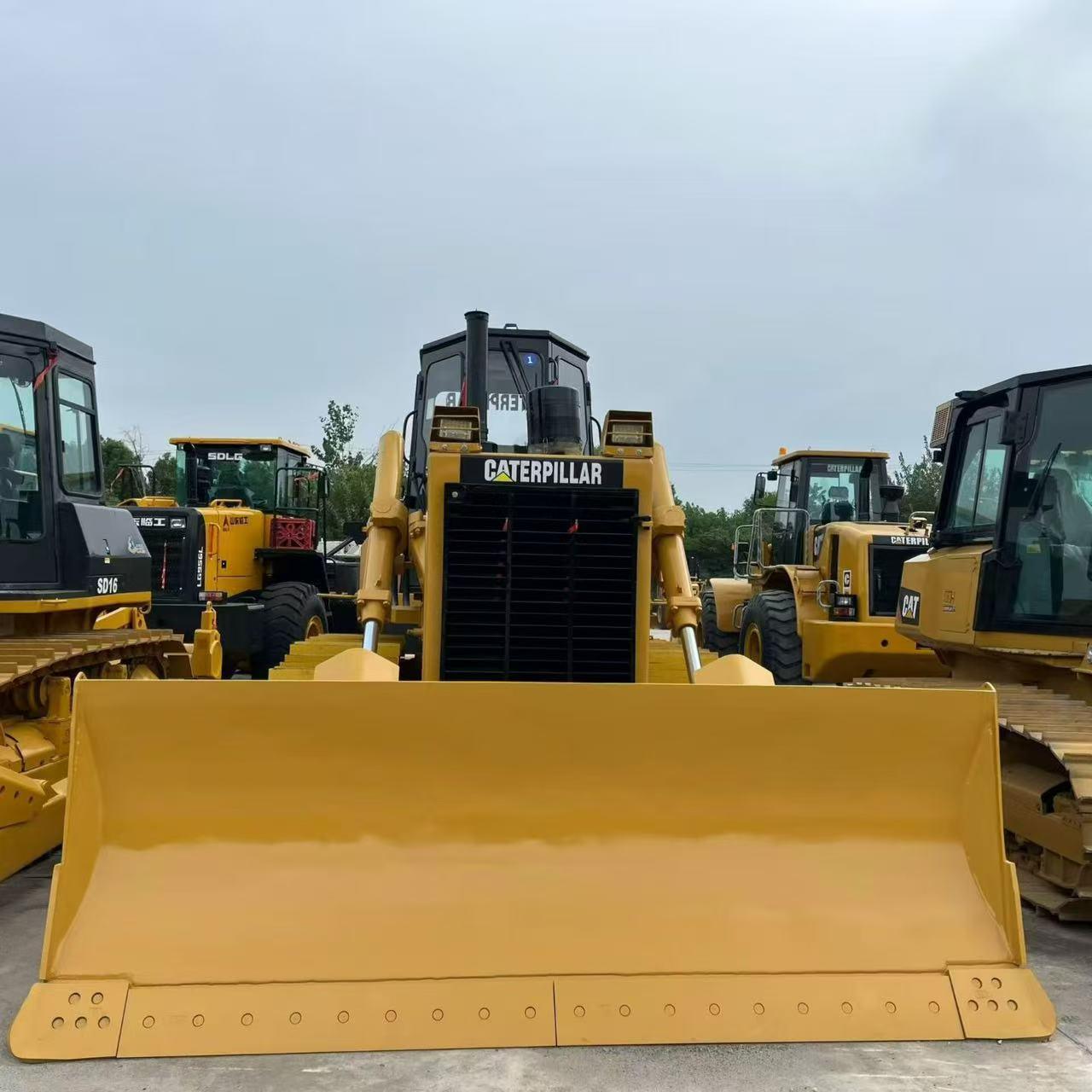

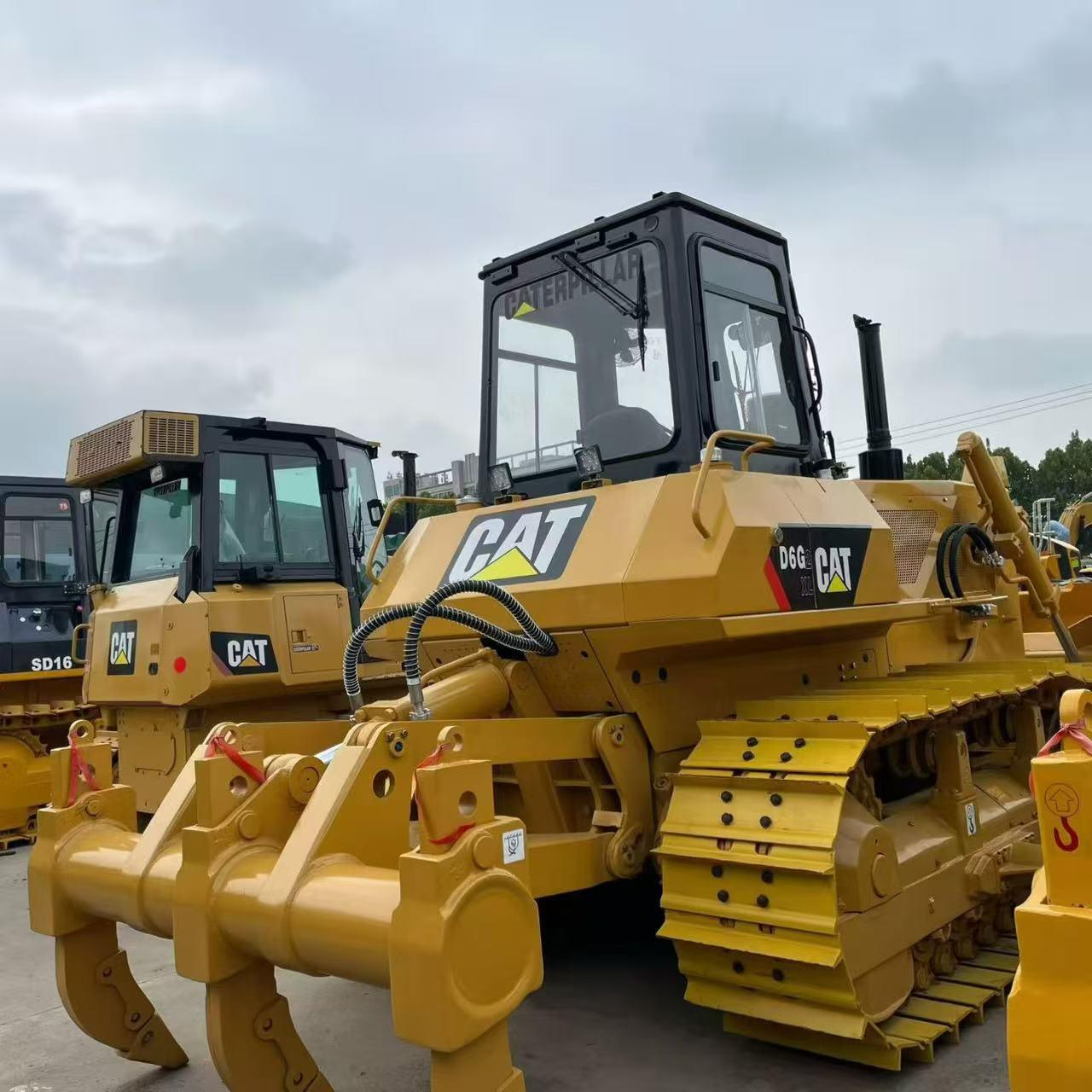

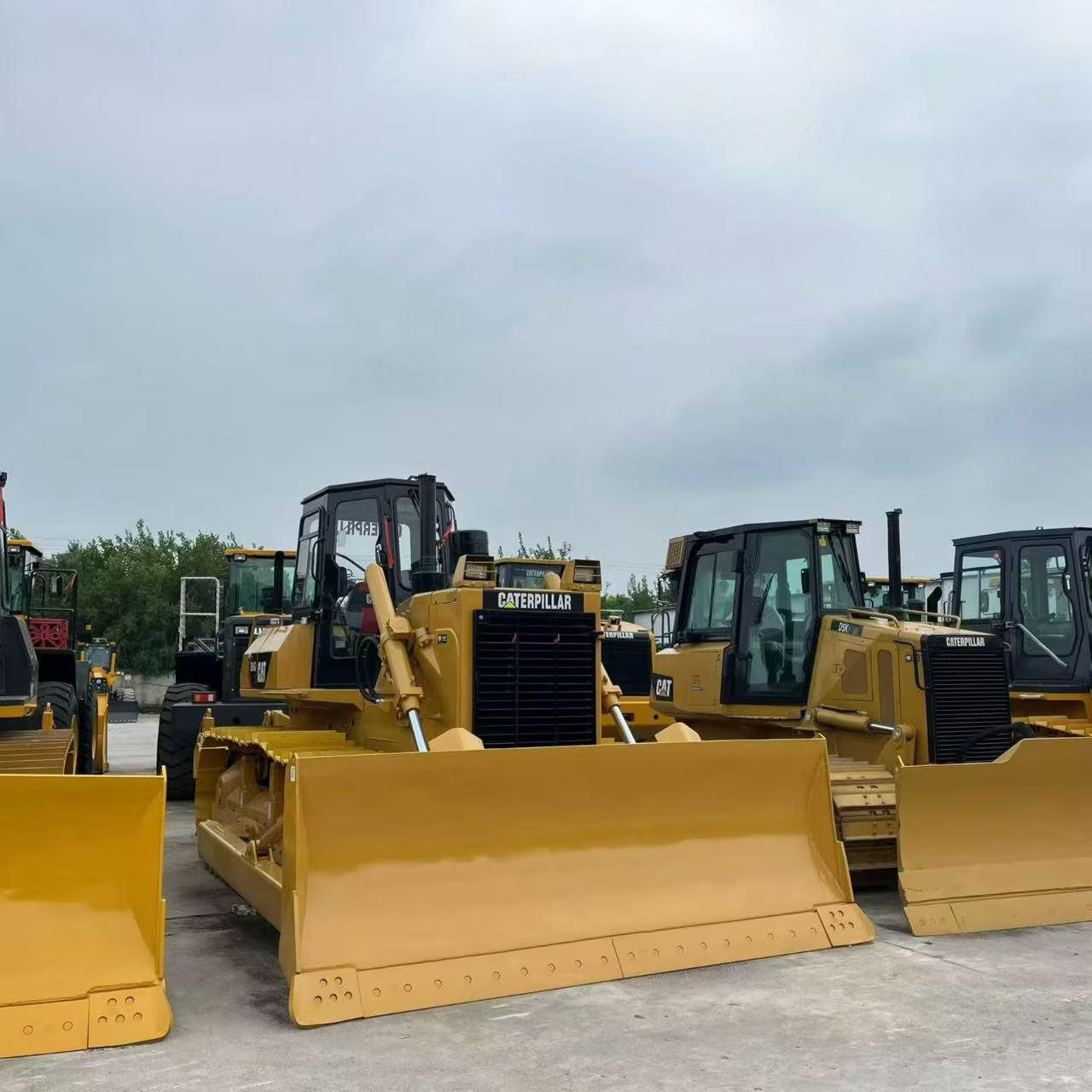

The CAT D6G is a medium-duty crawler bulldozer manufactured by Caterpillar, powered by the proven CAT 3306 diesel engine. The 3306 is a 6-cylinder, in-line, 4-stroke direct injection turbocharged diesel engine with 10.5 L displacement, cylinder bore and stroke of 121 mm × 152 mm. Net power output is 119 kW (approximately 160 HP) at 1,800–1,850 rpm, with gross power reaching up to 160 kW (215 HP) for some configurations. Operating weight varies by configuration: standard units weigh approximately 16,320 kg (36,000 lbs), while heavier configurations with blade and ripper reach 18,500–22,000 kg (40,800–48,500 lbs). Blade capacity options: straight blade approximately 3.6 m³, universal blade approximately 4.1 m³, with semi-universal blade available as a custom option for tough applications. The machine features a 3-speed powershift transmission with forward speeds of 4.0 km/h (F1), 6.9 km/h (F2), 10.8 km/h (F3) and reverse speeds of 4.8 km/h (R1), 8.4 km/h (R2), 12.9 km/h (R3). Maximum travel speed reaches 11.2 km/h forward and 13.4 km/h reverse. Track shoe width is 560 mm standard, with optional 610 mm or 660 mm for LGP configurations. Fuel tank capacity is 300–320 L, hydraulic system holds 47–49.2 L, engine oil capacity is 27 L, and cooling system holds 39 L. The D6G uses oval-track undercarriage design (non-elevated sprocket) for stability in grading applications. Blade options include Angling Blade for fine grading and Straight Blade for general dozing, with the Semi-Universal blade designed for tough applications requiring penetration and side loading. The D6G is also available in XL (Extra Long) and LGP (Low Ground Pressure) configurations for soft terrain operation.

Used CAT D6G pricing varies significantly based on age, operating hours, condition, configuration (standard vs. LGP), and market region. Based on comprehensive market analysis across multiple platforms, used D6G pricing in the current market falls into the following tiers:

Market data examples (verified listings):

• Economy tier: A 2013 D6G with 10,231 hours in domestic Chinese market is priced around $20,500 (15) .

• Good condition tier: A 2019 D6G with 1,962 hours is priced at approximately $26,000 (8) .

• Mid-tier: A 2023 D6G with 440 hours is priced around $40,000 (14) .

• Higher tier: A 2009 D6G-2 (Series 2) with 5,608 hours and good maintenance is listed at $51,500 (18) .

• LGP configuration: A 2005 D6G LGP II in good condition is listed at $48,000 (20) .

Price variation factors: Units with documented service history, undercarriage with 70%+ remaining life, and clean hydraulic systems command premium valuations. LGP configurations typically sell at a slight premium due to specialized applications (soft terrain, pipeline, reclamation). Import taxes, shipping costs (FOB vs. CIF), and local market demand also play significant roles. The D6G’s production years range from approximately 2005 to 2014, with some later units (2019–2023) still appearing in the market as used/reconditioned machines. Prospective buyers should verify operating hours via hour meter and ECM records (if available), inspect undercarriage wear (track rollers, sprockets, track shoes), and request operation tests before purchase.

The CAT D6G is widely recognized in the industry for excellent fuel efficiency relative to its power class, primarily due to the 3306 engine‘s direct injection technology, which maintains good productivity per unit of fuel burned by optimizing the combustion process. Actual field data shows that under normal working conditions with approximately 119 kW (160 HP) power draw, fuel consumption is approximately 10.5 L per hour. However, under heavy load conditions (full blade capacity, ripping operations, tough material), consumption increases to approximately 15–18 L per hour. With a fuel tank capacity of 300–320 L, the D6G can support continuous operation of 17–30 hours per refueling depending on load conditions. The D6G meets Euro 2 or Euro 3 emission standards depending on production year, making it widely acceptable in most international markets without DEF requirements.

Operating cost breakdown (typical, per operating hour):

Cost advantage over newer models: A used D6G typically costs 50–60% less than a newer D6N or D6T model, while offering similar pushing power and fuel efficiency. The simple mechanical engine (no DPF/DEF systems) significantly reduces long-term maintenance costs compared to Tier 4 Final models with complex after-treatment systems.

The CAT D6G is engineered for exceptional long-term durability, with well-maintained units routinely exceeding 15,000–20,000 operating hours without major component failure. The 3306 engine is legendary in the industry for reliability, with many units reaching 20,000+ hours before requiring major overhaul. However, D6G units in the used market typically show operating hours ranging from 6,500 to 20,000+ hours.

Common maintenance issues reported for the D6G include:

1. Engine starting difficulty or failure to start – Commonly caused by low fuel level, clogged fuel filters, low battery charge, or starter motor failure. Solutions include adding fuel, replacing clogged fuel filters, charging or replacing the battery, and inspecting the starter motor and ignition system.

2. Engine black smoke – Typically indicates clogged air filters, poor fuel quality, faulty injector atomization, or engine overload. Solutions include cleaning or replacing the air filter, using quality fuel, cleaning or replacing injectors, and controlling operating load.

3. Hydraulic system leakage and cylinder drift – Prolonged blade drop with engine running normally is typically caused by insufficient spring preload on the main valve‘s one-way valve or worn cylinder seals. The hydraulic system’s main pump flow is approximately 243 L/min, and verifying system cleanliness is essential.

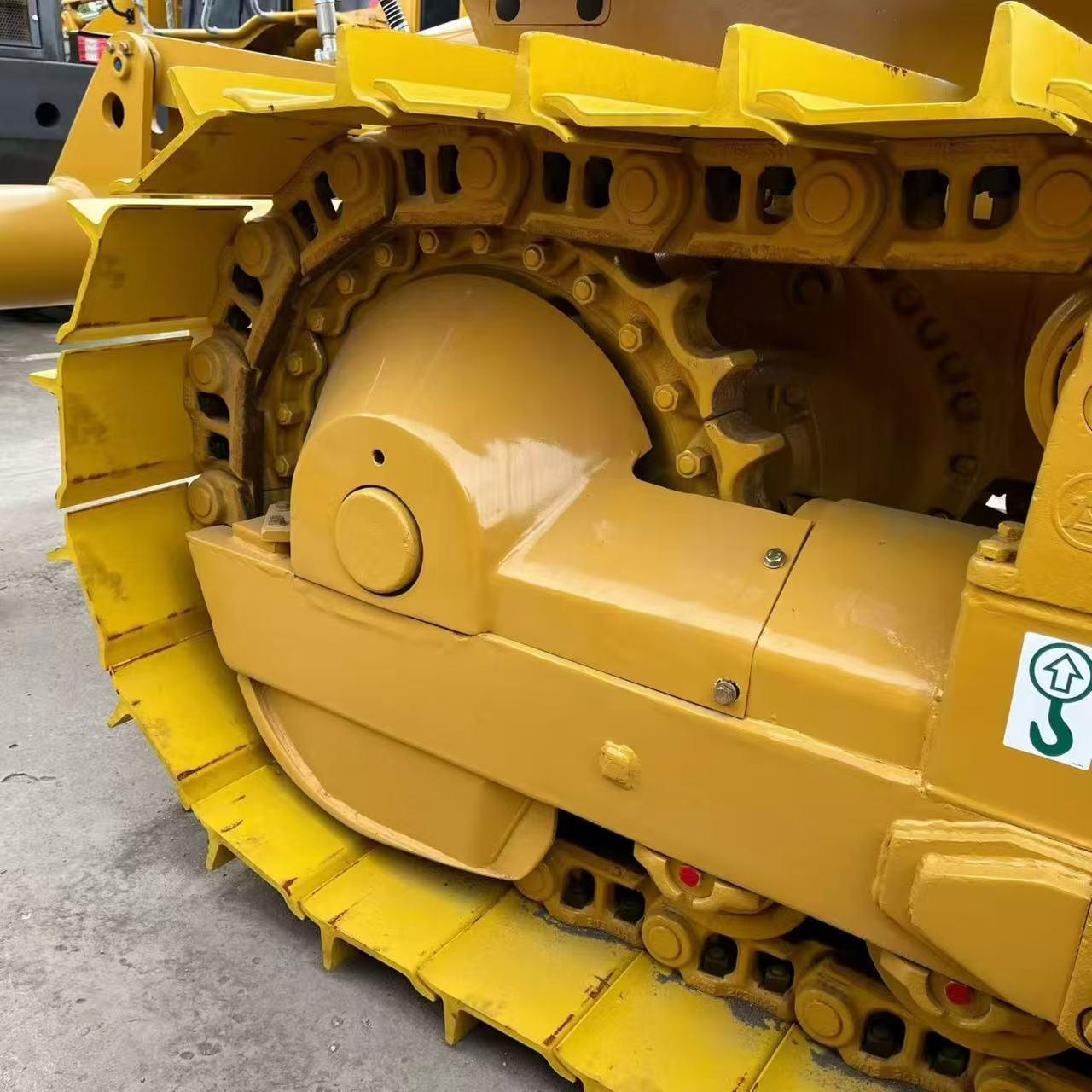

4. Track undercarriage wear – The undercarriage experiences continuous wear due to terrain impact, abrasive soil conditions, and heavy load distribution stress. Regular monitoring of track rollers, idlers, sprockets, and link assemblies is critical to reduce cost-per-hour. Wear-limit charts specific to the BWJ track frame are available in factory service manuals. Sealed and lubricated track chains (SALT) minimize internal bushing wear, extending undercarriage service life as a system.

5. Braking system failure – May require inspection of internal engine parts such as pistons, crankshafts and bearings for proper operation.

Maintenance schedule (recommended intervals):

• Daily (every 10 hours): Check fuel, engine oil, coolant levels; inspect hydraulic hoses for leaks; monitor dashboard parameters.

• Every 250 hours: Engine oil and filter change (27 L capacity).

• Every 500 hours: Fuel filter replacement; inspect hydraulic system.

• Every 1,000 hours: Hydraulic oil and filter change (47–49 L capacity); final drive oil inspection.

• Track adjustment: Grease under high pressure; relief valve must be handled with extreme caution to avoid injury.

Large openings on either side of the D6G make major service points easily accessible, minimizing maintenance and repair downtime.

Understanding the differences between Caterpillar D-series models is crucial for selecting the right used bulldozer for your application. Here‘s a comprehensive comparison:

Detailed model distinctions:

• D6D: Introduced in 1977 with a 140 hp (100 kW) engine, also available as D6D SA version with 125 hp for agricultural use. This is the oldest of the group, offering the lowest purchase price but older technology and potentially higher maintenance costs.

• D6G: Features the 3306 engine with net power of 119 kW (160 HP). Uses oval-track undercarriage (non-elevated sprocket) rather than the elevated sprocket design found on H-series and R-series. This oval-track design provides excellent stability for fine grading applications and is simpler to maintain. The D6G is considered the “sweet spot” in the D-series lineup for value-conscious buyers, offering modern-enough features without excessive electronics.

• D6H: Introduced in 1986 as Caterpillar‘s first D6 model with the elevated drive sprocket undercarriage, known as the CAT Hi-Drive system. This design improves operator comfort and undercarriage component life but adds complexity. The D6H is the most commonly found model for sale in the used market and is considered a very good machine.

• D6R: The latest of the four models, featuring High Track undercarriage (elevated sprocket) and more advanced electronics. Higher horsepower (up to 240 HP) makes it suitable for heavy dozing and production work, but used prices are significantly higher.

Expert recommendation for used buyers: For most contractors seeking a reliable, cost-effective dozer for grading, land clearing, and site preparation, the D6G offers the best value proposition. It provides sufficient power (160 HP) for most medium-duty applications, has simpler mechanics than the D6H/D6R (fewer electronics to fail), and typically costs 30–40% less than a comparable D6R. However, for soft terrain applications (wetlands, pipeline, reclamation), the D6G LGP configuration is highly recommended. For heavy production dozing requiring maximum pushing power, the D6R is the better choice despite higher purchase and operating costs.
