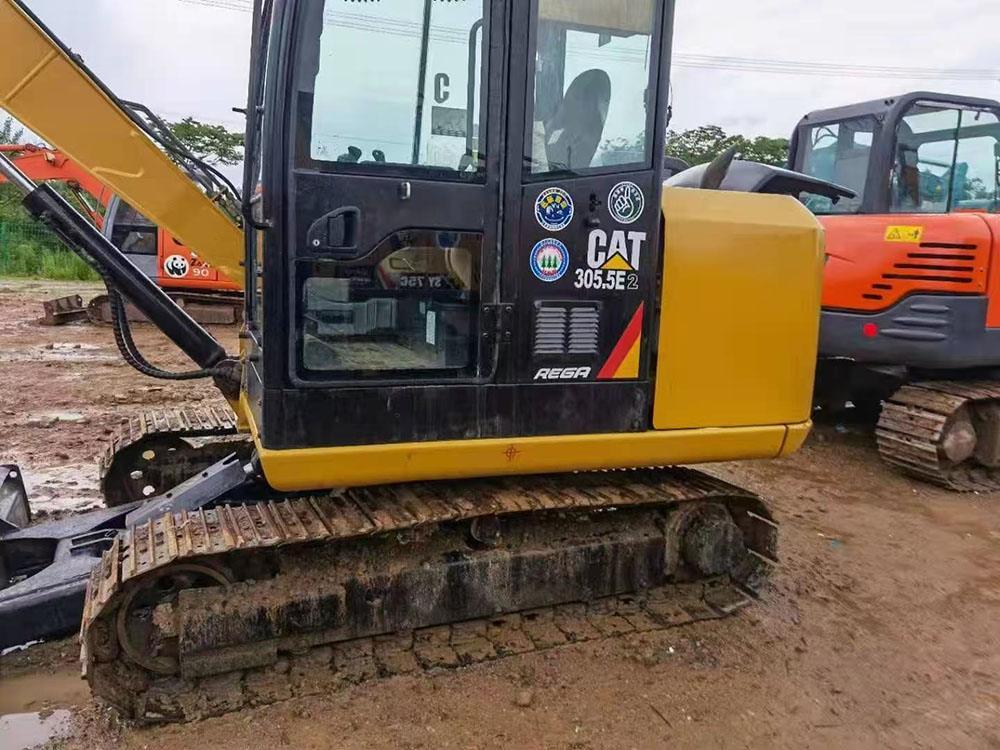

2024 CAT 305.5E Compact Used Excavator 5.5 Ton Mini Crawler for Sale

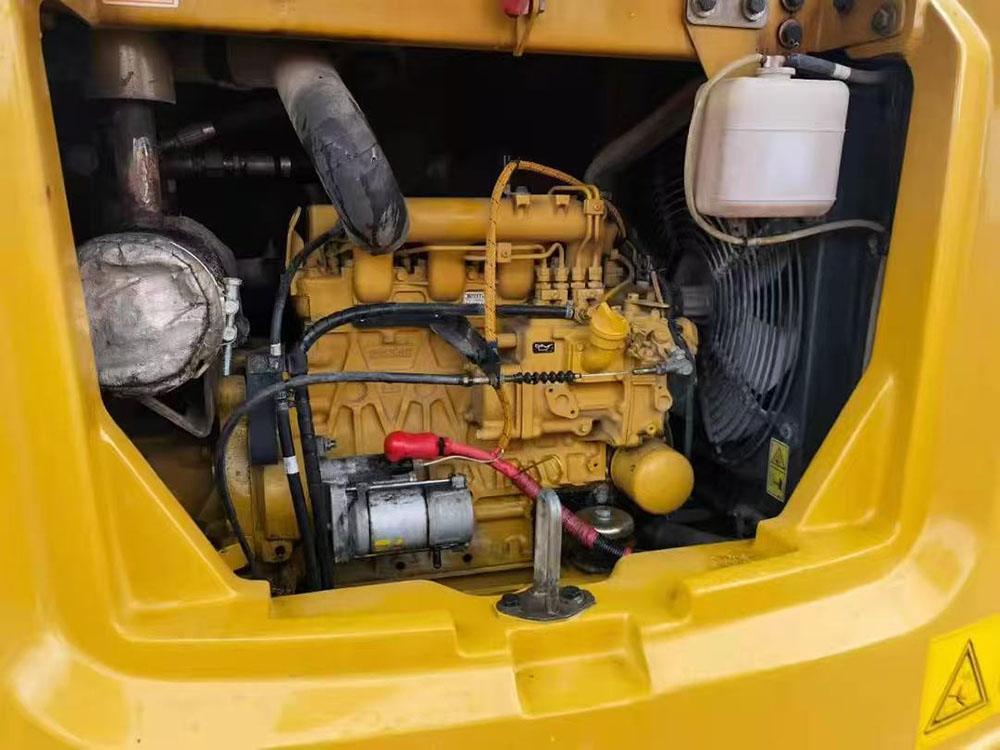

The 305.5E is built around the Cat C2.4 DI engine, a 2.4-liter, 4-cylinder diesel powerplant that delivers a gross power of 34.1 kW (45.7 hp) at 2,400 rpm and a net power rating of 32 kW (43 hp). This engine meets U.S. EPA Interim Tier 2 emission standards, making it compliant for use in most global markets.

The Cat C2.4 DI engine is the cornerstone of the 305.5E‘s appeal. It is a high-fuel-efficiency direct injection engine that delivers impressive digging forces and fast cycle times combined with excellent stability. Users consistently report that the machine offers reliable power and efficiency, with smooth engine operation and quick response times across a variety of tasks.

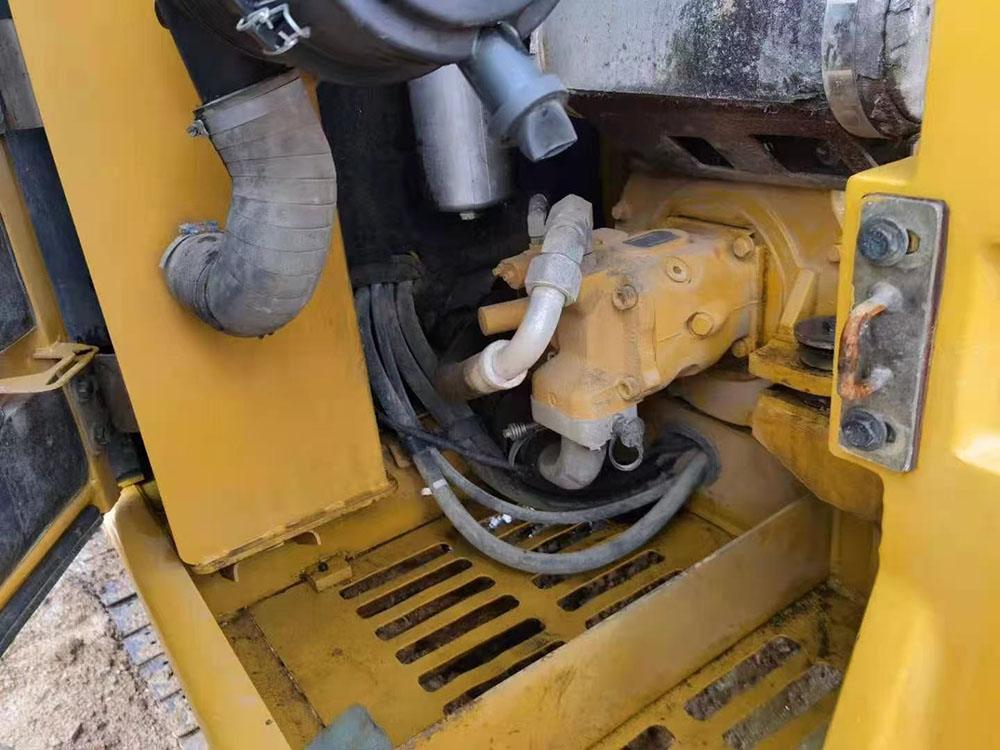

The machine’s load-sensing hydraulic system with a variable displacement piston pump delivers a pump flow of 140 L/min at 2,400 rpm and operates at a pressure of 24,500 kPa (3,553 psi) for equipment and travel functions. The primary auxiliary circuit provides 70 L/min at 3,553 psi, while the secondary auxiliary circuit delivers 38 L/min at 2,522 psi.

Operators praise the smooth, responsive hydraulics, which give the level of control demanded in any application, from fine grading and dozing to backfilling. The combination of powerful bucket and stick digging forces with fast cycle times results in world-class productivity and performance for a machine of this size.

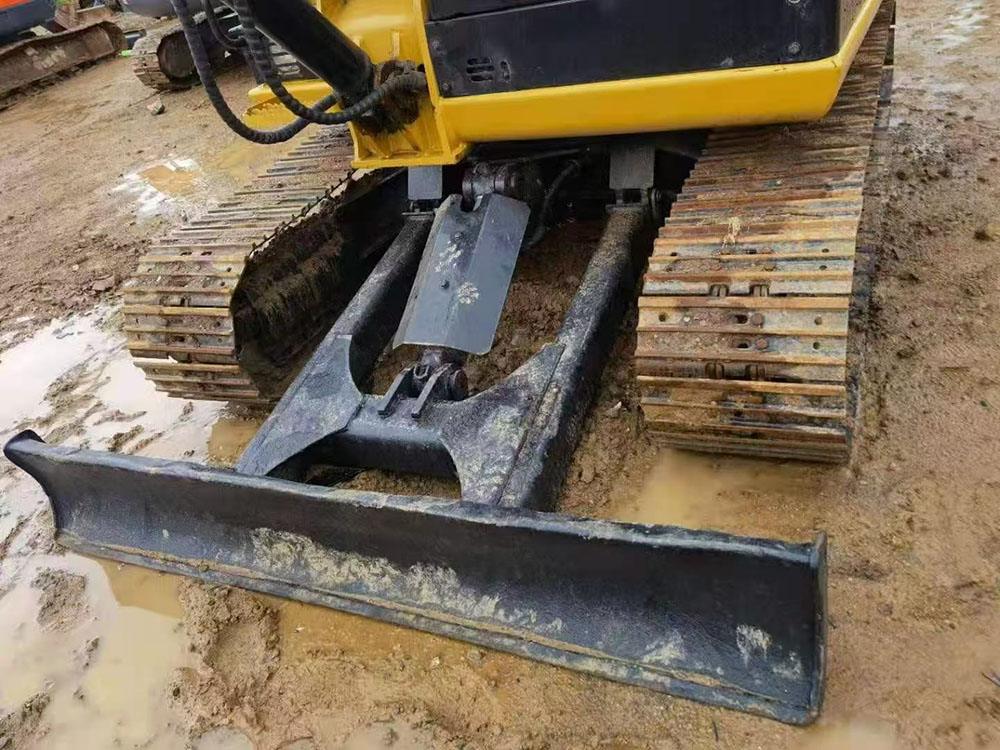

The two-speed travel function improves job site maneuverability with precise control by balancing travel speed with the torque needed for turning and traveling on inclines. The dozer blade float function enables easy ground leveling for landscaping and finish-grade applications as well as more efficient job site cleanup.

The 305.5E is generally a robust and durable machine, with user reviews praising its reliability and low maintenance requirements. However, several recurring issues have been documented by owners and technicians that used buyers should be aware of.

1. Premature Main Hydraulic Pump Wear (Service Bulletin). This is the most significant known issue affecting certain 305.5E units. According to a Caterpillar service bulletin, the 423-0097 Main Hydraulic Pump Group on some 305.5E excavators (specifically S/N: MX5106-125) is subject to premature wear. The early wear-out of the pump group will cause a distinct noise that the operator can hear. The permanent solution is to replace the pump group following the prescribed rework procedure. This is a critical pre-purchase inspection point: if the machine emits unusual noises from the pump area, budget for a replacement.

2. Total Hydraulic Failure / Loss of Response. Some owners have reported sudden and complete loss of hydraulic function — both joysticks and travel pedals become unresponsive. One documented case involved a 305.5 ECR with only 2,100 hours that experienced this failure. Potential causes include the lockout lever solenoid failure or the rubber coupling between the pump and motor failing. Diagnosing this issue requires systematic testing, starting with verifying that the safety lever switch is supplying power to the solenoid.

3. Weak Auxiliary Hydraulic Circuit Performance. Some users report insufficient auxiliary circuit pressure for running hydraulic hammers effectively. The problem is often traced to the auxiliary relief valve — a known weak point on these machines. The auxiliary circuit should deliver approximately 3,500 psi under load; significantly lower pressure indicates a problem with the relief valve or related components.

4. Gradual Hydraulic Weakening. Owners have reported 305.5E units that start strong but lose hydraulic power progressively as the machine runs. Mechanics recommend checking for fine metal particles in the return hydraulic filter (indicating pump wear), inspecting relief valves in the main control valve for debris or damaged O-rings, and performing systematic pressure testing.

5. Undercarriage Wear. As with any tracked machine, undercarriage components are major wear items. Track shoes, sprockets, rollers, and idlers require periodic inspection and replacement. The 305.5E uses 400 mm triple bar grouser pads as standard, and wear patterns should be carefully evaluated on any used unit.

6. General Maintenance Considerations. Like any aging machine, the 305.5E may experience hydraulic hose hardening, seal wear, and fitting loosening over time. Owners should budget for prompt replacement of worn seals and hoses — far less expensive than dealing with a failed pump due to fluid loss. Regular replacement of hydraulic fluid and filters, along with inspection of pivot pins and connections, prevents most issues.

The 305.5E was designed with serviceability as a priority. The counterweight is positioned low at the back, and two large side doors make all maintenance points extremely easy to reach from ground level.

Recommended Maintenance Intervals (from Caterpillar):

The use of Cat HYDO Advanced hydraulic oil significantly extends the hydraulic oil change interval to 3,000 hours, reducing fluid and filter consumption over the machine‘s life. S·O·S oil analysis can further extend change intervals based on actual oil condition.

Estimated Maintenance Costs:

The actual maintenance cost over 5,000 hours depends heavily on operating conditions, parts pricing by region, and whether major components like the hydraulic pump require replacement. The official Caterpillar preventive maintenance agreement covers all maintenance parts, labor, and travel costs performed at 250- or 500-hour intervals.

Fuel Consumption: The 305.5E is known for excellent fuel efficiency, thanks to the C2.4 DI engine‘s design. While official consumption figures vary by application, typical operation consumes approximately 4–6 liters (1.0–1.6 gallons) per hour under normal working conditions. The 63–78 liter fuel tank provides approximately 10–15 hours of continuous operation, depending on load intensity.

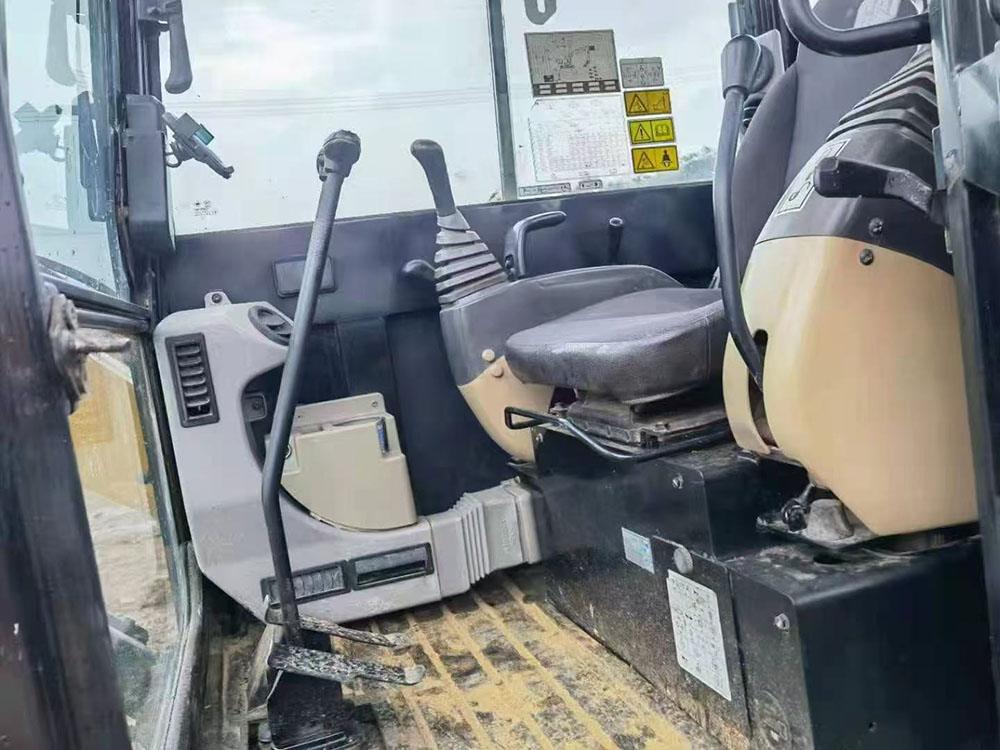

The 305.5E‘s cab is designed for operator comfort and long-hour productivity:

• Ergonomic layout with intuitive joystick and pedal controls

• Excellent visibility in all directions, critical for work in confined or residential areas

• Low cab vibration due to advanced viscous mounts, reducing operator fatigue

• Sound-suppressed ROPS standard for safety

• Adjustable seat with multiple positioning options

• Automatic climate control available on cab-equipped models

• Intuitive LCD display panel providing real-time machine data and diagnostic information

• Standard auxiliary hydraulic controls at the joystick for attachment operation

Technology Features:

• Load-sensing hydraulics with variable displacement piston pump for precise control

• Two-speed travel for optimal maneuverability

• Blade float function for finish grading

• Product Link telematics capable (dealer-installed option)

• Self-diagnostic system stores active and intermittent fault codes for easier troubleshooting
