Used Sunward SWE150E 15-Ton Excavator with Isuzu Engine

The Sunward SWE150E is equipped with a naturally aspirated or turbocharged Isuzu 4BG1 or 6BG1 series engine (configuration depends on export region and year). This is a critical reliability benchmark in the 15-ton class. In practical fleet terms, this engine is a known quantity—it’s a mechanically injected, gear-driven platform without the complexity of modern Tier 4 Final EGR systems or Diesel Particulate Filters (DPF). For a used buyer, this means significantly lower electronic failure points and easier field diagnostics. From a maintenance authority standpoint, we recommend verifying compression consistency across all cylinders and inspecting the injection pump for any governor lag during throttle response testing. Given proper fuel filtration hygiene, these Isuzu blocks routinely exceed 15,000 operating hours before requiring a major overhaul, making them one of the strongest residual value drivers in the mid-sized Chinese excavator market.

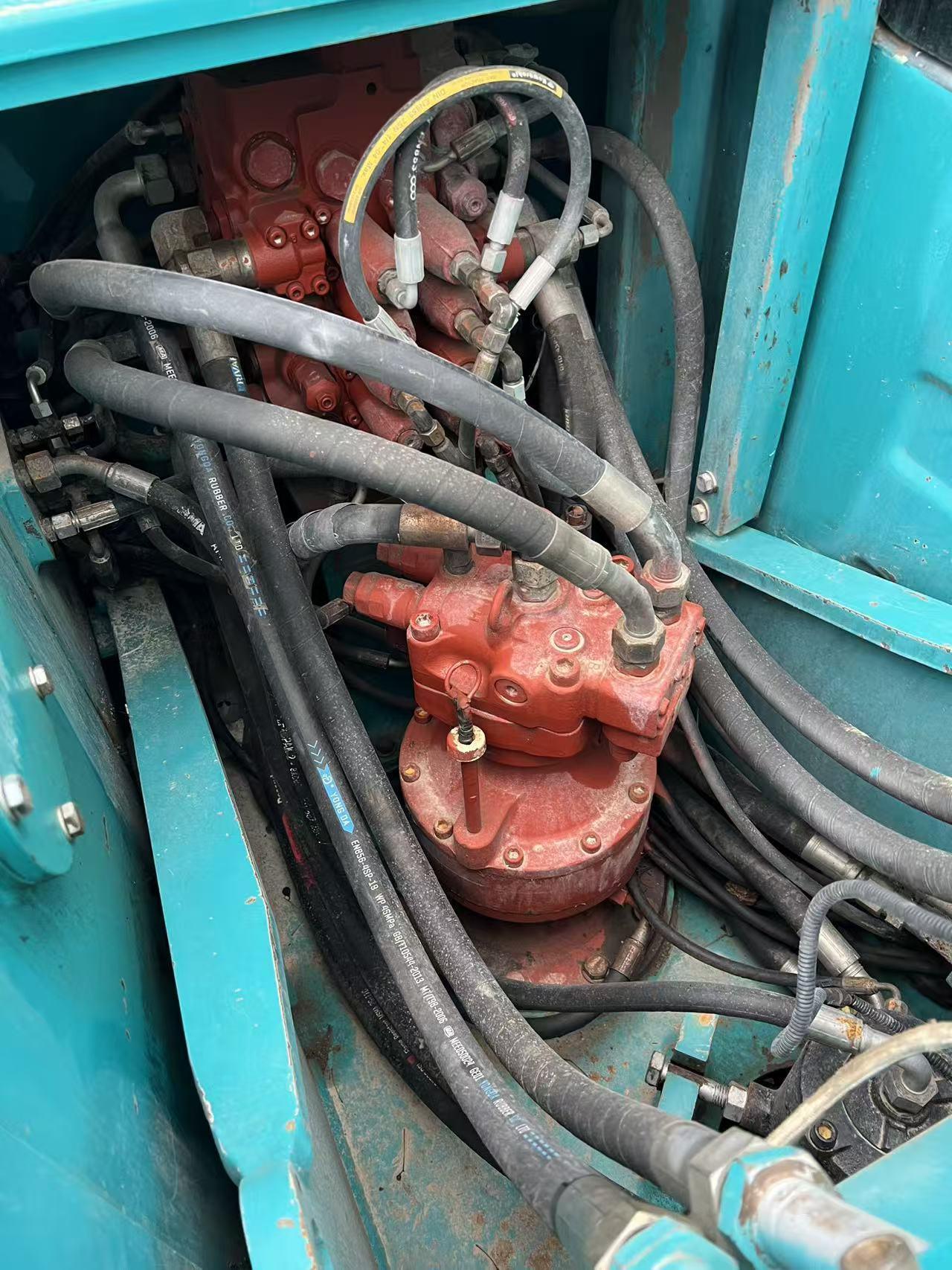

The SWE150E utilizes a Kawasaki or Rexroth licensed open-center hydraulic system with a tandem pump configuration. In field operations, you’ll observe that the boom lift speed and arm digging force are competitive with the Kobelco SK140 or Hyundai R140 series, though the combined operation smoothness may feel slightly more aggressive (less dampened). The authoritative insight here lies in the auxiliary circuit: the SWE150E generally provides a standard two-way auxiliary piping with high-flow capability, making it an adaptable platform for hammer and shear attachments without requiring expensive proportional valve upgrades. When assessing a used unit, the key wear indicators are the swing motor pinion backlash and the main relief valve pressure stability. As long as the main relief is holding steady at 34.3 MPa (approx. 4,975 psi) and there is no cavitation noise from the pump suction line, this hydraulic package delivers professional-grade utility excavation performance with minimal efficiency drop-off from new spec.

If you are procuring this unit for export or remote site delivery, we recommend a triage inspection focusing on three structural areas unique to this chassis:

1.Center Swivel Joint (Rotary Union): Check for vertical play and bypass leakage. Sunward SWE models have a robust undercarriage frame, but hard impact from rock breakers can accelerate wear on the swivel seals, leading to track motor case drain contamination.

2.Boom Foot Pin and Boss Welds: While the boom plate is heavy-gauge steel, the hardened bushings in the foot area are the primary wear item. Request a video of the boom being raised with the bucket curled in—listen for a metallic “clunk” at the transition point, which indicates bushing ovality.

3.Slew Ring Grease Retention: Unlike some competitors, the SWE150E’s slew bearing relies heavily on molybdenum grease retention. Dry or shiny bearing surfaces visible through the seal gap are a red flag and indicative of a potential $3,500+ future replacement.
A comprehensive fluid analysis report for both engine oil (soot content) and hydraulic oil (ISO particle count) is non-negotiable for an authoritative condition assessment of this model.

Sunward’s global parts network has matured significantly, with established distribution centers in North America, Europe, and ASEAN. The SWE150E benefits from a high degree of “Standard Industrial Sourcing.” Specifically:
• Undercarriage: Chain links and sprockets are interchangeable with D4/D5 equivalent pitch dimensions. Track shoe bolts are standard metric grade 10.9.
• Engine Service Parts: Filters and seals are widely available through any Isuzu Industrial Engine Dealer network; you are not locked into a proprietary OEM filter shape.
• Hydraulic Components: Seals and O-rings for the main control valve are standard metric JIS/NKF sizes, not custom proprietary profiles.
For fleet managers, this means you can maintain a used SWE150E with a downtime window similar to a mainstream brand, provided you have a supplier relationship for Sunward’s proprietary monitor panel and ECU (if applicable). The mechanical simplicity of this 15-ton model keeps the “non-stocked” parts list very short.

The SWE150E is structurally engineered for intermittent hammer use. The OEM installation often includes hammer return filter plumbing and reinforced boom piping clamps straight from the factory. In an authoritative usage context, this machine handles a 1,200-1,600 ft-lb class hydraulic breaker without the chassis fatigue seen in lighter 12-ton competitors. However, there is a critical operational caveat for used buyers: because this is a 15-ton standard tail swing machine, continuous hammering on extremely hard granite or reinforced concrete generates significant heat soak in the hydraulic system. We strongly advise verifying that the used unit either has the optional auxiliary cooler package or that the main radiator fins are completely free of debris. If those cooling parameters are met, this machine is a robust, cost-effective alternative for secondary breaking and trenching in moderate rock conditions.
