2022 Caterpillar 349GC Used Excavator 49 Ton Crawler for Sale

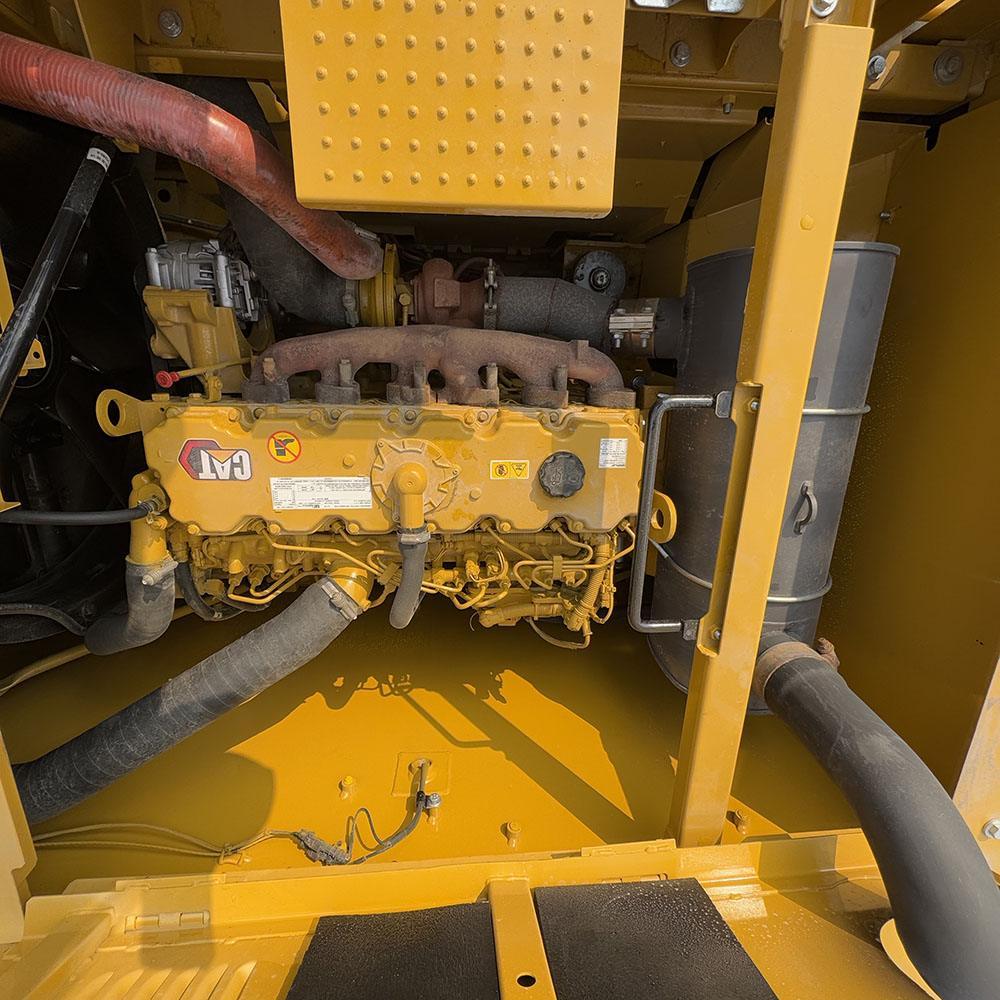

The CAT 349GC is powered by the Cat C13 engine, delivering 302 kW (405 hp) of net power and meeting US EPA Tier 2, EU Stage II, and China Stage 2 emission standards. Operating weight is approximately 47,700–48,100 kg (105,000–106,000 lb), placing it firmly in the 50-ton large excavator class. The machine comes standard with a 2.41 m³ heavy-duty bucket, though bucket capacities can range from 1.8 m³ to over 3.0 m³ depending on configuration.

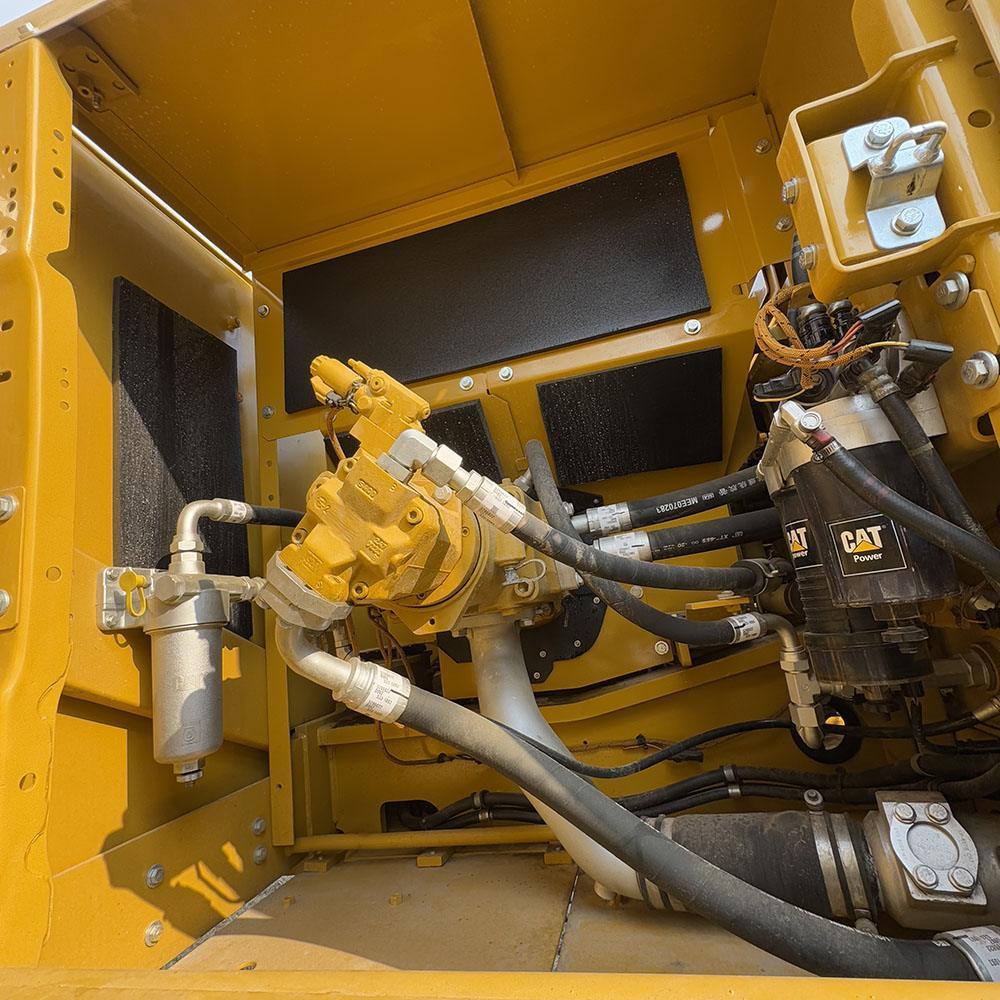

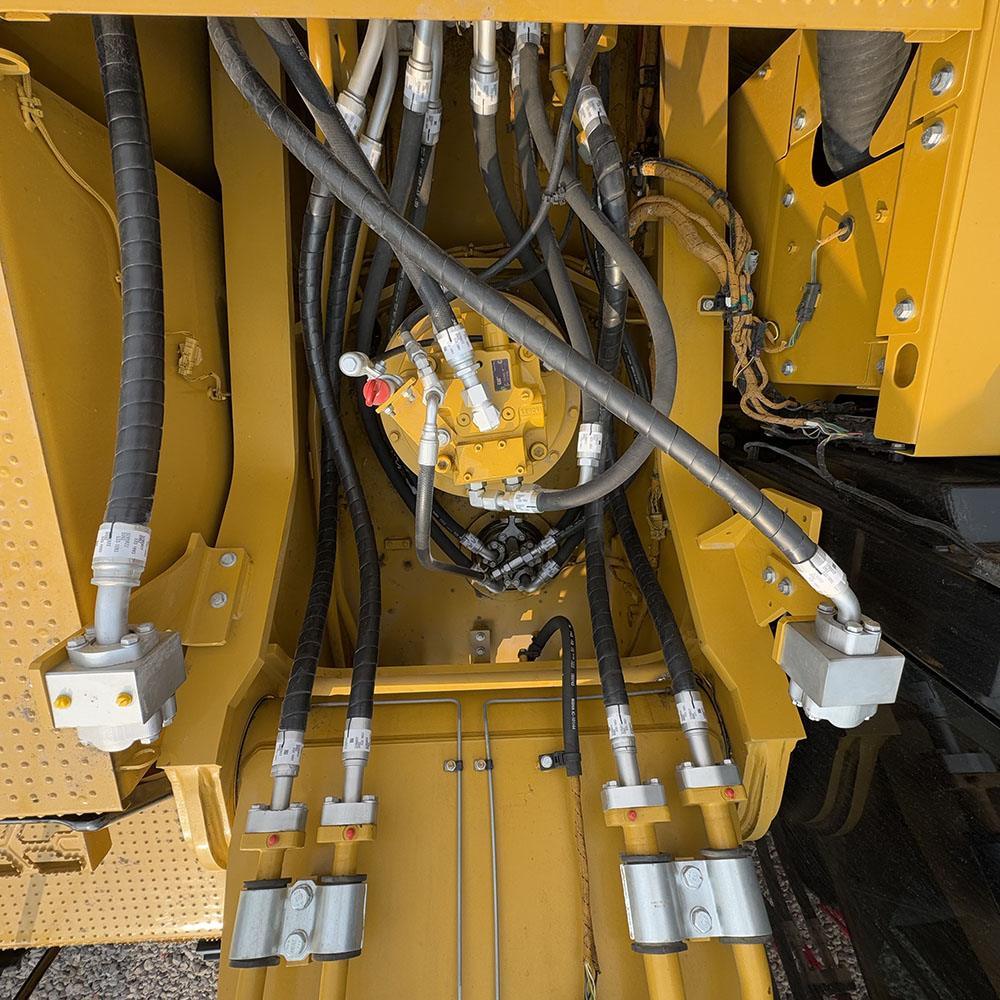

The hydraulic system is a standout feature, with a total flow of 779 L/min (389 × 2 pumps) at a maximum pressure of 35,000 kPa (5,076 psi)—or 38,000 kPa in lift mode. This delivers an ISO bucket digging force of 271 kN (60,850 lbf) and an SAE bucket digging force of 229 kN, making it one of the most powerful excavators in its class.

The 715-liter fuel tank provides extended operating range, while the 3.35 m (11’0″) stick and 6.9 m (22’8″) reach boom give a maximum digging depth of 7,700 mm and a ground-level reach of 11,770 mm.

The 349GC is part of Caterpillar’s Next Generation series, which introduced transformative improvements over the previous 349F model. According to official data, the Next Generation 349 offers up to 45% more operating efficiency, up to 10% more fuel efficiency, and up to 15% lower maintenance costs compared to its predecessor.

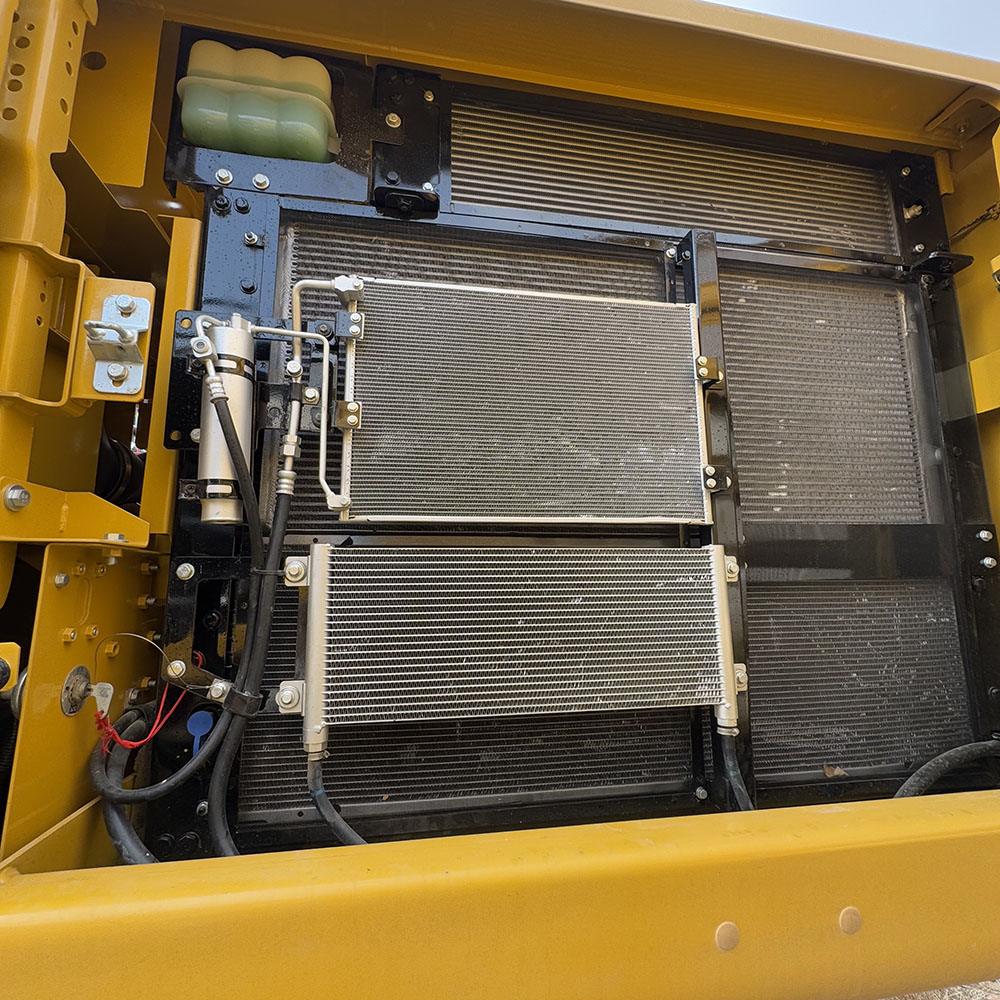

The efficiency gains come from the new Smart Mode system, which automatically matches engine and hydraulic power to digging conditions, reducing fuel consumption while optimizing performance. When hydraulic demand decreases, engine speed automatically lowers to further reduce fuel usage. The cooling system features a new on-demand fan that operates only when required, saving additional fuel. A reverse function assists with cleaning debris from cooling cores—another plus for maintaining peak efficiency.

The new electrohydraulic control system eliminates the need for pilot lines, reduces pressure losses, and lowers fuel consumption. Fewer hydraulic lines mean less required oil and lower long-term operating costs.

One of the most compelling features of the 349GC is the suite of standard factory-installed technologies. According to Caterpillar, the 349 has the industry’s highest level of standard factory-installed technology:

• Cat Grade with 2D: Provides operators with visual guidance to grade via the standard touchscreen monitor, enabling more accurate cuts. The system is readily upgradable to Cat Grade with Advanced 2D or 3D for enhanced accuracy

• Grade Assist: Automates boom and bucket movements to help operators of all skill levels improve their results

• Cat Payload: Helps operators increase loading efficiency with on-the-go weighing; real-time payload estimates can be calculated without swinging, preventing overloading and underloading of trucks

• Lift Assist: Quickly calculates the weight of the actual load being lifted and compares it to the rated capability of the excavator, with visual and auditory alerts indicating whether the machine is within safe working range

• E-Fence: Prevents the excavator from moving outside operator-defined points, helping protect the machine, underground utilities, and other objects from damage

• Cat Product Link: Provides a constant stream of wireless information via the online VisionLink interface, allowing machine managers to quickly evaluate critical operating information from the office

The 349GC’s cab is designed for maximum operator comfort and safety. Key amenities include:

• Keyless pushbutton start standard

• Large touchscreen monitor with jog dial keys for control

• Sound-suppressed ROPS (Rollover Protective Structure) standard

• Advanced viscous cab mounts that reduce vibration by up to 50% compared with previous models

• Tilt-up console for easy cab entry and exit

• Bluetooth integrated radio with USB ports for connecting and charging phones

• Automatic climate control that maintains temperature settings regardless of ambient conditions

The 349GC’s reduced maintenance requirements are a major selling point for used buyers:

• Air filter: New design with integrated pre-cleaner provides double the dust-holding capacity of the previous design

• Hydraulic return filter: 3,000-hour service life—a 50% increase over previous filters

• Fuel system filters: Synchronized for service at 1,000 hours—a 100% increase over previous filters

• Ground-level service points: The fuel system’s water and sediment drains and hydraulic system’s oil level check are positioned close together at ground level, making routine daily maintenance faster, easier, and safer

These extended intervals translate directly to lower cost per hour. Combined with the fuel efficiency improvements, the 349GC offers a compelling total cost of ownership proposition compared to earlier models like the 349F.
