2022 CAT 325D2L Used Excavator 25 Ton Crawler for Sale

Name: 2022 CAT 325D2L Used Excavator 25 Ton Crawler for Sale - Taihongmachinery
Price: 28888.00 USD
Availability: InStock

1-2 Unit$28,980

>=3 Units$28,888

（Price is FOB . Contact WhatsApp for CIF price & shipping cost.）

The Cat® 325D2L is a 25-ton class hydraulic excavator that delivers the perfect balance of power, stability, and reliability for demanding earthmoving and quarry applications.

Powered by the Cat® C7 ACERT™ engine producing 141.7 kW (190 hp) , the 325D2L combines proven performance with excellent fuel efficiency. The Long Undercarriage (L) design provides superior stability and lower ground pressure—ideal for soft terrain, slope work, and heavy lifting operations.

Key Specifications:

Operating Weight: 26,700 – 29,240 kg (58,860 – 64,460 lb)
Engine: Cat C7 ACERT™, 7.1L, 141.7 kW (190 hp)
Max Digging Depth: 7,820 mm (25.7 ft)
Max Reach at Ground Level: 10,600 mm (34.8 ft)
Bucket Capacity: 1.2 – 1.4 m³
Travel Speed: 5.5 km/h (3.4 mph)
Fuel Tank: ~400 L (106 gal)

Key Advantages:

No DPF/DEF required – Tier 3 emissions compliance means simpler, lower-cost ownership
Long undercarriage – enhanced stability and reduced ground pressure on soft terrain
Durable structure – reinforced X-shaped carbody, grease-lubricated tracks
Proven C7 ACERT engine – millions of field hours across global applications
Strong resale value – Cat equipment holds value better than most competitors
Global dealer support – parts and service available worldwide

The 325D2L fills the critical gap between 20-ton and 30-ton classes—offering more digging force than a 320D2 while maintaining better maneuverability than a 330D2. It is the ideal choice for contractors who need a machine that is “just big enough, just capable enough, and just reliable enough” .

Specifications may vary by configuration. Please verify exact specifications with your dealer for the specific unit in stock.

Brand	CAT, Caterpillar
Country of Origin	Japan
Year	2022
Model Number	325D2L
Working Hours	800H

Categories: Caterpillar, Excavator

Tags: CAT325D2L, Caterpillar 325D2L, caterpillar excavator, Construction Machinery, crawler excavator, large digger, used digger, used excavator

Inquire now

Product Categories

Vicky

Business Manager

Call

Inquire now

Product Specifications

Category	Parameter	Value (Metric / Imperial)
Model	Model	CAT 325D2L (D Series 2, Long Undercarriage)
	Product Type	Crawler Hydraulic Excavator
Engine	Engine Model	Cat® C7.1 ACERT™
	Engine Power (Net)	128–152 kW (172–204 hp)
	Displacement	7.01 L (428 in³)
Weights	Operating Weight	25,000–30,000 kg (55,000–66,000 lb)
	Common Operating Weight	~29,200 kg (64,400 lb)
Working Ranges	Max Digging Depth	6.73–7.82 m (22.1–25.7 ft)
	Max Reach at Ground Level	9.71–10.90 m (31.9–35.8 ft)
	Max Dumping Height	6.58–7.90 m (21.6–25.9 ft)
Digging Forces	Bucket Digging Force	~150 kN (≈15.3 t)
	Stick Digging Force	~110 kN (≈11.2 t)
Travel	Travel Speed (High/Low)	5.5 / 3.3 km/h (3.4 / 2.1 mph)
Capacities	Fuel Tank	400–520 L (106–137 gal)
	Hydraulic Tank	120–135 L (32–36 gal)
Dimensions	Transport Length	~10.5 m (34.5 ft)
	Transport Width	2.9–3.2 m (9.5–10.5 ft)
	Transport Height	~3.3–3.4 m (10.8–11.2 ft)
	Tail Swing Radius	3.71 m (12.2 ft)
Undercarriage	Track Shoe Width (Standard)	600 mm (24 in)
	Ground Pressure	~45–50 kPa

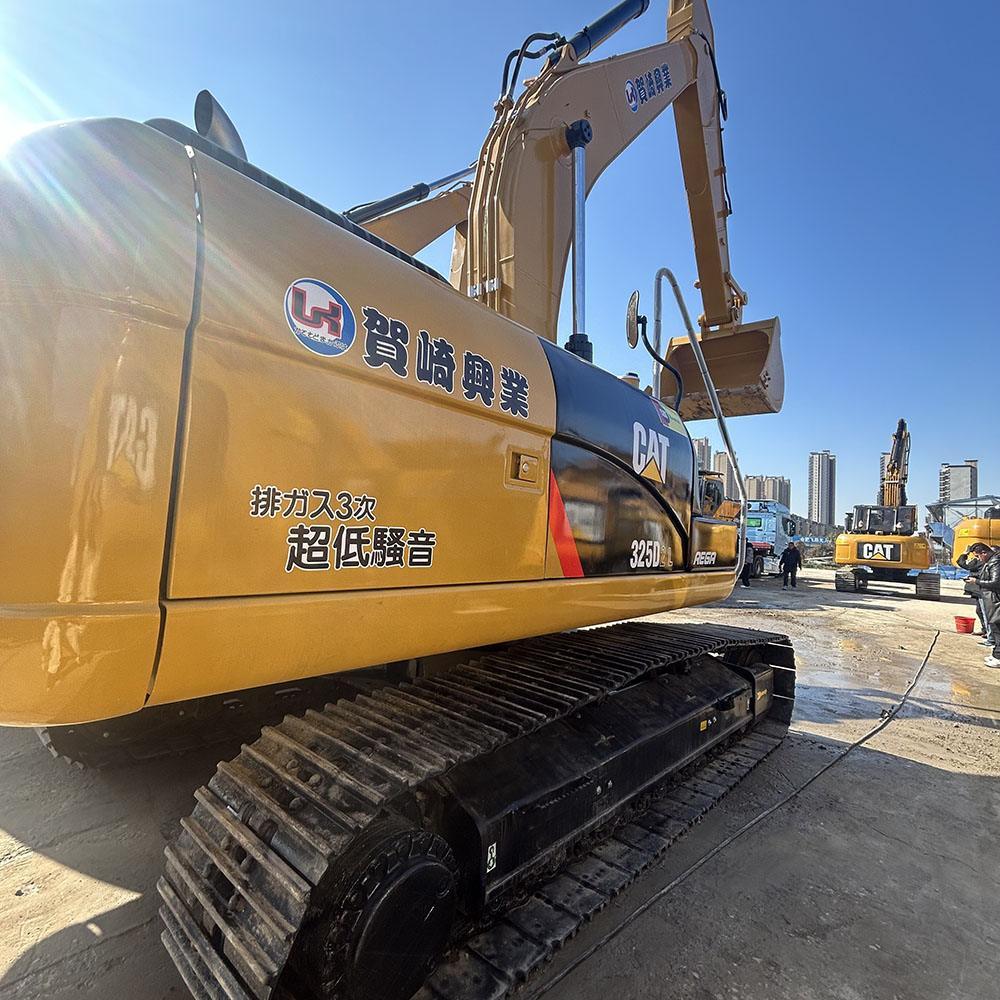

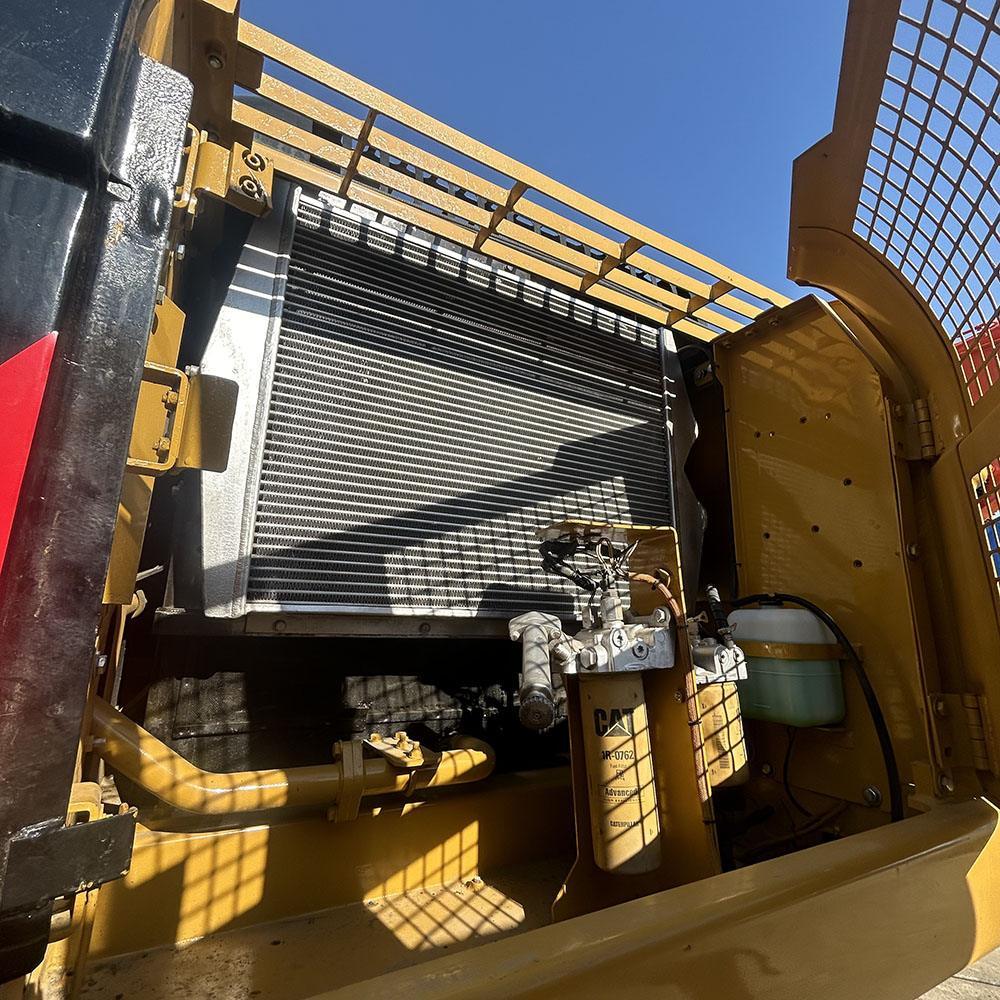

Product Pictures

Expert Inspection Report

Overview: The 25-Ton “All-Rounder”

The Cat® 325D2L is a 25-ton class hydraulic excavator from Caterpillar’s D2 Series, representing a significant evolution of the original 325D. The “D2” designation indicates the second-generation upgrade to the D-Series platform, while the “L” stands for Long Undercarriage—a design choice that delivers superior stability and lower ground pressure.

This machine fills a critical gap in Caterpillar’s lineup—positioned between the 320D2 (20-ton class) and the 330D2 (30-ton class). It was engineered for contractors who need more digging force than a 20-ton machine can provide while maintaining better maneuverability than a 30-ton class excavator.

For owners who require a machine that is “just big enough, just capable enough, and just reliable enough” —the 325D2L remains one of the most difficult machines to overlook.

Production Period: Approximately 2012–2018 (overlapping with 325F production in some markets).

Core Specifications

Parameter	Value
Engine Model	Cat® C7 ACERT™
Displacement	7.1 L
Net Power (SAE J1349/ISO 9249)	141.7 kW (190 hp)
Gross Power (ISO 14396)	148.5 kW (199 hp)
Operating Weight (Standard Undercarriage)	26,700 kg (58,860 lb)
Operating Weight (Long Undercarriage – L)	29,240 kg (64,460 lb)
Standard Bucket Capacity	1.2 – 1.4 m³
Main Hydraulic Flow	2 × 235 L/min (total 470 L/min)
Maximum Pressure – Equipment	35,000 kPa (5,076 psi)
Maximum Pressure – Swing	28,500 kPa (4,134 psi)
Maximum Digging Depth	7,170 – 7,820 mm (23.5 – 25.7 ft)
Maximum Reach at Ground Level	10,410 – 10,600 mm (34.2 – 34.8 ft)
Maximum Digging Height	9,800 – 10,950 mm (32.2 – 35.9 ft)
Maximum Dumping Height	7,020 mm (23.0 ft)
Swing Speed	9.0 – 10.0 rpm
Maximum Travel Speed	5.5 km/h (3.4 mph)
Gradeability	35° / 70%
Fuel Tank Capacity	~400 L (106 gal)
Hydraulic System Capacity	250 L (66 gal)
Engine Oil Capacity	30 L (8 gal)
Cooling System Capacity	30 L (8 gal)
Track Shoe Width (Standard)	600 mm (24 in)
Track Gauge	2,380 mm (7.8 ft)

Working Ranges

Parameter	Value
Maximum Digging Depth	7,170 – 7,820 mm (23.5 – 25.7 ft)
Maximum Reach at Ground Level	10,410 – 10,600 mm (34.2 – 34.8 ft)
Maximum Digging Height	9,800 – 10,950 mm (32.2 – 35.9 ft)
Maximum Dumping Height	7,020 mm (23.0 ft)
Maximum Vertical Digging Depth	5,730 – 5,960 mm (18.8 – 19.6 ft)
Tail Swing Radius	3,500 mm (11.5 ft)

Design Philosophy: The D2 Series Advantage

The 325D2L represents the “steady progress” approach that defined Caterpillar’s D2 Series. Compared to the original 325D, the D2 generation introduced several key refinements:

Engine and ACERT™ Technology

The Cat C7 ACERT™ engine delivers 141.7 kW (190 hp) of net power
ACERT Technology works at the point of combustion to optimize fuel delivery, air management, and electronic controls
Meets U.S. EPA Tier 3 and EU Stage IIIA emission standards
No DPF or DEF required—significantly simpler maintenance compared to Tier 4 Final machines
Proven reliability with extended service intervals

Long Undercarriage (L) Design

The “L” suffix provides a longer track frame, delivering superior stability and lower ground pressure
Ideal for soft terrain, slope work, and heavy lifting operations
Provides enhanced flotation and reduced soil disturbance
Critical advantage when working in muddy or unstable ground conditions

D2 Series Refinements

Improved hydraulic response and controllability
Enhanced operator comfort and reduced cab noise
Extended maintenance intervals reducing downtime
Refined fuel efficiency compared to the original D-Series
Up to 8% fuel savings compared to the predecessor model

Structural Durability

X-shaped box-section carbody provides excellent resistance to torsional bending
Grease-lubricated tracks reduce internal bushing wear and extend service life
Reinforced boom and stick with high-strength welded box construction
Stress-relieved welds for extended fatigue life

Performance and Reliability: What Owners Say

Based on real owner feedback, the 325D2L has earned a strong reputation for reliability and performance.

The Positives

“Strong power, fast work speed, convenient maintenance”
“Good reliability. Good performance. Good fuel economy.”
“The cabin is comfortable, visibility is good, and the machine handles well.”
“High reliability and durability. The engine doesn’t require expensive repairs if you follow the maintenance schedule.”

Market Reputation: The 325D2L is widely regarded as one of the most reliable machines in its class. It sits between the 320D2 and 330D2 in Caterpillar’s lineup, offering a perfect balance of power and maneuverability.

Common Issues and Watch-Outs

1. Fuel System Sensitivity. The C7 ACERT’s MEUI fuel system, while robust, is sensitive to fuel quality and contamination:

Use only genuine Cat filters—aftermarket filters often fail to maintain proper pressure
Regular fuel filter changes are essential for injector longevity
Water contamination can cause injector damage and power loss

2. Hydraulic System Leaks. Seals and O-rings can harden over time, leading to external leaks around:

Cylinder seals (boom, stick, bucket)
Main control valve
Hydraulic hoses and fittings

3. Undercarriage Wear. The undercarriage is a major wear item:

Track chain stretch and sprocket wear
Roller and idler wear
Track shoe wear—inspect for uneven patterns

4. Electrical and Sensor Issues. Intermittent fault codes can be difficult to diagnose without Cat ET diagnostic software.

Owner Verdict

One owner on Machineryline gave the 325D2L a comprehensive 5/5 score for both operation and maintenance, noting: “The excavator is reliable, although not brand new. Caterpillar is excellent machinery. There is access to all important joints. The cabin is comfortable. The excavator does not fail in operation.”

Maintenance: Keeping the 325D2L Running

The 325D2L was designed with serviceability in mind, featuring extended maintenance intervals and user-friendly diagnostic systems.

Recommended Maintenance Intervals

Component	Interval	Notes
Engine oil and filter	Every 500 hours	Use Cat-specified oil (30 L capacity)
Fuel filters	Every 500 hours	Genuine Cat filters essential
Hydraulic return filter	Every 1,000–2,000 hours	Monitor with S·O·S sampling
Hydraulic oil change	Extended intervals	Monitor with S·O·S sampling
Swing drive oil	First 250h, then every 1,000h	19 L per drive
Final drive oil	First 250h, then every 1,000h	8 L per drive
Coolant change	Every 2,000 hours	30 L capacity

Estimated 5,000-Hour Maintenance Cost Trends (Reference – USD)

Maintenance Category	Estimated Cost (USD)	Notes
Engine oil + filter changes (10 × 500h)	$2,000–3,500	Using genuine Cat parts
Fuel filters (10 × 500h)	$400–800	Primary + secondary sets
Hydraulic oil + filter change (2–3 changes)	$1,500–2,500	Based on extended intervals
Swing/final drive oil changes	$600–1,200	Every 1,000h
Undercarriage (tracks, sprockets, rollers)	$6,000–12,000	Major wear item
Bucket teeth / wear parts	$1,500–3,500	Depends on material handled
Labor (accumulated over 5,000h)	$4,000–8,000	Varies significantly by region
Estimated 5,000-hour total (routine)	$16,000 – $31,500	Excludes major repairs

Note: These are estimated ranges. Actual costs vary by region, parts pricing, operating conditions, and maintenance history.

How the 325D2L Compares to Competitors

Specification	CAT 325D2L	Komatsu PC220-8	Hitachi ZX225
Engine	Cat C7 ACERT	Komatsu SAA6D107E	Isuzu 4HK1X
Net power	141.7 kW (190 hp)	~125 kW (168 hp)	~132 kW (177 hp)
Operating weight	26,700–29,240 kg	~24,000–25,000 kg	~25,000 kg
Hydraulic flow	470 L/min	~450 L/min	~460 L/min
Max digging depth	7,820 mm	~6,900–7,200 mm	~7,000 mm
Max reach	10,600 mm	~10,200–10,500 mm	~10,800 mm
Tail swing	Standard / L	Reduced / Conventional	Standard
DPF/DEF required	No (Tier 3)	Yes (Tier 4F on later models)	Yes (Tier 4F on later models)
Dealer network	★★★★★	★★★★ (Asia strong)	★★★★
Resale value	★★★★★	★★★★	★★★★

CAT 325D2L Advantages:

No DPF/DEF complexity—simpler, cheaper to maintain than Tier 4 Final competitors
Long undercarriage stability—the “L” design provides better stability than many standard-track competitors
Proven C7 ACERT engine—millions of field hours across global applications
Strongest resale value—Cat consistently holds value better than competitors
Excellent parts availability—Cat’s global dealer network is unmatched

Where Competitors May Win:

Komatsu PC220-8 offers Komtrax telematics and slightly better fuel efficiency in light applications
Hitachi ZX225 is renowned for exceptionally smooth hydraulic control

Used Market Price Reference (2025–2026)

Used CAT 325D2L pricing varies significantly by year, hours, condition, attachments, and region.

General Price Ranges (Reference – USD):

Condition	Hours	Price Range (USD)
Excellent (low hours, documented service)	Under 3,000	$45,000–65,000
Good (average hours, well-maintained)	3,000–5,000	$35,000–45,000
Fair (higher hours, visible wear)	5,000–8,000	$25,000–35,000
As-is / needs work	8,000+	$18,000–25,000

Valuation Factors:

Factor	Premium/Discount	Notes
Complete service records	+10–15%	Documentation reduces buyer risk
Low hours (under 3,000)	+$10,000–20,000	Near-new condition commands premium
Long undercarriage (L model)	+$3,000–8,000	Enhanced stability
Hydraulic thumb & quick coupler	+$3,000–6,000	Adds significant functionality
Additional buckets	+$1,500–4,000	Multiple buckets add versatility
Visible hydraulic leaks or fault codes	–20–40%	Indicates deferred maintenance
No service records	–10–20%	Highest inspection risk

Used Buyer’s Checklist

1. Verify the model. Confirm whether the machine is the 325D2, 325D2L, or 325F. Check the serial number and model plate.

2. Verify the engine. The 325D2L has the C7 ACERT engine (7.1 L)—confirm the engine model.

3. Cold-start the engine. Listen for knocking or rough idle. Watch for smoke: black = fuel issues, blue = oil burning, white = coolant leak. Let it warm up fully.

4. Test all hydraulic functions. Cycle boom, stick, bucket, swing, and travel under load. The machine should respond smoothly without hesitation.

5. Check for hydraulic drift. Raise the boom, shut off the engine, and time the drop. Significant drift within 5 minutes indicates failing cylinder seals.

6. Inspect the undercarriage. Check track sag (10–30 mm), sprocket condition, roller wear, and track shoe condition. The 325D2L’s undercarriage is durable, but replacement is a major expense.

7. Run a diagnostic scan. Using Cat ET, check for active or logged fault codes—especially fuel system and sensor codes.

8. Request S·O·S oil analysis. Laboratory results for engine oil, hydraulic oil, and final drives reveal internal wear before symptoms appear.

9. Verify service records. A machine with complete documentation is worth a premium over one with unknown maintenance history.

10. Beware of repainted machines. Fresh paint can hide cracks, weld repairs, and leaks. Look for overspray on hydraulic hoses and wiring.

Final Verdict

The CAT 325D2L is one of the most respected 25-ton excavators in the global market. Its combination of the proven C7 ACERT engine, long undercarriage stability, and Caterpillar’s unmatched global parts support has kept it relevant long after production ended.

Who Should Buy a Used CAT 325D2L:

Contractors who need more power than a 320D2 but don’t require the size of a 330D2
Quarry and earthmoving operators requiring a reliable, durable 25-ton machine
Owners who prioritize durability and resale value
Buyers who want Tier 3 emissions compliance—no DPF/DEF complexity
Operations with access to strong Cat dealer support

Who Should Look Elsewhere:

Operators needing a zero-tail-swing machine—the 325D2L is a conventional tail-swing design
Buyers who cannot access Cat dealer support—OEM parts are essential for reliability
Those who need Tier 4 Final emissions compliance—the 325D2L meets Tier 3 only

The Bottom Line:

A well-maintained CAT 325D2L with documented service history, clean S·O·S oil analysis, and a healthy undercarriage will deliver thousands of hours of reliable service and hold its value better than most competitors. The long undercarriage provides exceptional stability for heavy digging and lifting, while the Tier 3 emissions compliance—meaning no DPF or DEF systems—represents a significant advantage over newer Tier 4 Final machines.

For contractors who need a 25-ton production machine and have the resources to maintain it properly, the used CAT 325D2L remains one of the smartest buys in today’s market.

Specifications may vary by configuration and year of manufacture. Please verify exact specifications with your dealer for the specific unit in stock.

Company Description

Taihongmachinery (TH Engineering Equipment Limited) is a premier global supplier specializing in the export of high-quality, pre-owned heavy construction equipment.
Our company sells Caterpillar,Komatsu,Sany,Doosan,Hyundai,Hitachi,Volvo,Kubota used excavators, used bulldozers, used loaders, used graders, used cranes, used rollers, etc. With a strategic focus on the international trade of used excavators, we have established ourselves as a cornerstone of reliability for clients across Southeast Asia, South Asia, the Middle East, Africa, and South America.

Shipping & Delivery Policy

At Taihong Machinery, we provide flexible global logistics solutions for all our used heavy machinery.

Shipping Method: We recommend working with professional international freight forwarders specializing in heavy equipment (RORO or Flat Rack container shipping).

Flexibility: We are happy to work with your preferred freight forwarder. If you do not have one, we can leverage our network of reliable, certified global logistics partners to provide competitive shipping quotes to your nearest port.

Preparation: All machines undergo professional cleaning and safety inspections prior to loading to ensure they meet international shipping regulations.

Documentation: We provide all necessary export documentation, including Bills of Lading, Packing Lists, and Commercial Invoices, to ensure smooth customs clearance at the destination.

Return & Refund Policy

We provide a detailed pre-shipment inspection report and live video call to confirm machine condition. Returns are generally not accepted, but if the machine does not match the inspection report, we will negotiate a resolution.

Inspection: We encourage all buyers to conduct a thorough inspection of the machine, either in person at our yard in China or via live video consultation with our technicians.

Pre-shipment Verification: Before the machine leaves our yard, we provide a full functional test report and live video proof of the engine, hydraulic, and structural condition. Once the buyer confirms the machine status and the machine is loaded for export, we do not accept returns.

Warranty: All equipment is sold in “as-is” condition. We are committed to transparency and will disclose all known technical details prior to purchase.

Support: Should any issues arise during the shipping process, we will provide full support in communicating with your insurance provider and the shipping line.

Success Cases

The 325D2L is built around the Cat C7.1 ACERT™ diesel engine — a 7-liter, 6-cylinder turbocharged powerplant widely regarded as one of Caterpillar’s most durable engines in this size class. It delivers:

Parameter	Specification
Engine Model	Cat C7.1 ACERT™ (6-cylinder turbo diesel)
Gross Power / Net Power	141–167 kW (192–224 hp) depending on emission tier and market
Displacement	7.01 L (428 in³)
Operating Weight Range	25,000–30,000 kg (depending on configuration: canopy/cab, counterweight, tracks)
Common Operating Weight (L-version)	26,700–29,240 kg (58,860–64,460 lb)
Track Shoe Width (Standard)	600 mm (24 inches)
Fuel Tank Capacity	400–520 L (106–137 gal)

Working Ranges:

Parameter	Value
Maximum Digging Depth	7.82 m (25 ft 8 in)
Maximum Reach at Ground Level	10.9 m (35 ft 9 in)
Maximum Dumping Height	7.9 m (25 ft 11 in)
Maximum Digging Height	10.95 m (35 ft 11 in)
Bucket Digging Force (ISO)	~150 kN (≈15.3 tonnes)
Bucket Capacity Range	1.2–2.0 m³ (depending on bucket type and configuration)

Performance:

Parameter	Value
Travel Speed (High/Low)	5.5 km/h / 3.3 km/h (3.4 mph / 2.1 mph)
Swing Speed	9.0–10.0 rpm
Gradeability	35° (70%)

The 325D2L is designed for “general construction, digging, trenching, and material handling,” using a hydraulic system that powers the boom, stick and bucket through multiple circuits for responsive control. The long undercarriage — indicated by the “L” suffix — provides enhanced stability for heavy digging, lifting and working on uneven ground.

Understanding the 325D2L‘s place in Caterpillar’s evolution is crucial. The “D” represents the D-series (2005–present), the “2” marks the Series 2 upgrade, and the “L” denotes Long Undercarriage.

C7.1 ACERT Engine — The Heart of the Machine. The Cat C7.1 is a mature, widely deployed engine across Caterpillar‘s 20–25 ton excavator lineup. It is known for delivering reliable power with competitive fuel efficiency. The engine is offered in multiple emission configurations — Tier 2 / EU Stage II for certain markets and Tier 3 / EU Stage IIIA for others — which affects both rated power and aftertreatment requirements. Importantly, the C7.1 was engineered with robust fuel system components, making it less sensitive to fuel quality variations than some competitors.

Long Undercarriage Stability. The 600 mm wide standard track shoes and long undercarriage significantly improve stability during heavy digging and lifting tasks. This translates directly into operator confidence and productivity when working in challenging terrain.

Serviceability Improvements. The D2 series consolidated maintenance points and extended service intervals compared to original D-series. Daily checks — engine oil dipstick, fuel filters, hydraulic oil level — remain accessible from standing level. S·O·S sample ports make routine fluid analysis simple.

Fuel Efficiency. The C7.1 combines variable displacement pump hydraulics with two operating modes (Smart and Standard). Operators can switch between power modes depending on the task — lighter work benefits from economy mode, reducing unnecessary fuel burn. In real-world use, this translates to approximately 15–20 liters per hour depending on workload, which is competitive for the 25-ton class.

The 325D2L benefits from strong brand-level reviews. Across Caterpillar tracked excavators, owners rate reliability at 4.4/5, maintenance at 4.4/5 and operation at 4.5/5 based on aggregated user feedback. One experienced operator noted of a similar-model CAT excavator: “The equipment is good, but it requires a professional approach… a very convenient and maneuverable machine, with good experience one can manipulate it precisely like a jeweler”. Another owner praised the CAT 325D: “Excellent review inside the cabin, the bucket digs skillfully. You can quickly get the job done on such an excavator”.

However, the D2 generation is not without documented issues that used buyers should be aware of:

Fuel Electric Lift Pump (EFLP) Issues. There have been isolated instances of electric fuel lift pump problems on C7.1 engines. Symptoms include a noisy pump, low fuel pressure, high fuel temperature, and in some cases, the engine may be derated or stop entirely. On C7.1 engines, the diesel particulate filter may not regenerate due to low fuel pressure. For used buyers: Test the machine under full load and listen for unusual pump noise. A healthy EFLP should operate quietly and maintain consistent fuel pressure.

Fuel Supply Restrictions. The root cause of many fuel-related issues is often a restriction in fuel supply from the tank to the EFLP. This can be caused by:

Clogged in-line or primary fuel filters (use only genuine Cat filters)
Debris in the fuel tank
Kinked or damaged fuel lines
Incorrect fuel specification

Engine Derate or Power Loss. Insufficient fuel supply can cause the engine to enter derate mode (reduced power) or stop entirely. Symptoms include sluggish performance under load and difficulty maintaining RPMs.

Fuel Pressure Low / Electric Fuel Lift Pump (EFLP). More recently, there have been isolated instances of issues with the electric fuel lift pump on C7.1 and similar engines. Symptoms include a noisy pump, low fuel pressure, high fuel temperature, and in some cases, the engine may be derated or stop.

Electrical and Sensor Issues. As with any electronically controlled machine, sensors and wiring can degrade over time, particularly in high-hour units.

Structural Wear on High-Hour Units. After 8,000–10,000 hours, pin and bushing wear in the boom, stick and bucket linkage is normal. Track frame cracking is rare but can occur on machines subjected to severe side-loading. A thorough inspection of all high-stress welds is essential before purchase.

Key Takeaway for Used Buyers: The 325D2L is fundamentally a reliable and durable machine, but its electronic fuel system requires attention. Most common issues — fuel pump problems, derate conditions, sensor failures — are detectable with proper pre-purchase inspection and diagnostic tools like Cat ET. A machine with documented service records and clean S·O·S oil analysis is far less likely to present these problems than one with unknown maintenance history.

Cat‘s D2 generation was designed with serviceability as a priority, and extended service intervals translate directly into lower long-term operating costs.

Recommended Maintenance Intervals (Reference):

Component	Service Interval
Engine oil and filter (first change)	100 hours
Engine oil and filter (subsequent)	Every 500 hours
Fuel filters (primary/secondary)	Every 500 hours (use genuine Cat filters)
Hydraulic return filter	Up to 3,000 hours (extended vs. older models)
Hydraulic oil change	Every 3,000–5,000 hours (extendable with S·O·S analysis)
Coolant change	Every 6,000 hours / 3 years
Swing drive oil	First 250 hours, then every 1,000 hours
Final drive oil	First 250 hours, then every 1,000 hours

Caterpillar components are designed with one-, two- and three-level lifecycles — timely maintenance of lower-level parts protects and extends the life of the more expensive Tier 3 (core) components, helping owners avoid catastrophic failures.

Estimated 5,000-Hour Maintenance Cost (Reference):

Maintenance Category	Estimated Cost (USD)
Engine oil + filter changes (10× at 500h)	$2,000–3,500
Fuel filters (10× at 500h)	$300–600
Hydraulic oil + filter change (1–2×)	$1,000–2,000
Air filter replacements	$100–200
Undercarriage (tracks, sprockets, rollers)	$5,000–9,000
Bucket teeth / wear parts	$1,000–3,000
Hydraulic pump rebuild (if needed, every 8,000–10,000h)	$3,000–6,000
Labor (accumulated over 5,000h)	$3,000–7,000
Total 5,000-hour cumulative cost	$15, 400-$ 31,300

Note: These are estimated ranges. Actual costs vary by region, parts pricing, operating conditions and maintenance history. Properly maintained units will trend toward the lower end of this range.

In the 25-ton medium excavator segment, the CAT 325D2L competes primarily with the Komatsu PC220-8 and Hitachi ZX225. The table below is based on typical industry benchmarks for machines in this class.

Specification	CAT 325D2L	Komatsu PC220-8	Hitachi ZX225
Operating weight	~25,000–29,000 kg	~24,000–25,000 kg	~25,000 kg
Engine	C7.1 ACERT	Komatsu SAA6D107E	Isuzu 4HK1X
Net power	141–167 kW (192–224 hp)	~125 kW (168 hp)	~132 kW (177 hp)
Max digging depth	~7.82 m	~6.9–7.2 m	~7.0 m
Max reach	~10.9 m	~10.2–10.5 m	~10.8 m
Bucket digging force	~150 kN	~145 kN	~140 kN
Dealer network	Global, extensive	Strong in Asia	Strong in Asia
Resale value	Highest in class	Moderate	Moderate

CAT 325D2L advantages:

Global parts availability — Cat‘s dealer network is unmatched, minimizing downtime for repairs
Strong resale value — A well-maintained used Caterpillar excavator can often fetch 60–70% of its purchase price even after several years of use
Long undercarriage stability — The “L” suffix provides better stability than many standard-track competitors
Proven C7.1 engine — Millions of field hours across global applications
“Built to be rebuilt” philosophy — CAT components are engineered to withstand multiple life cycles

Komatsu PC220-8 advantages:

Komtrax telematics standard on newer units
Lower initial purchase price in many markets
Excellent fuel efficiency reputation
Strong dealer network in Asia and Africa

Hitachi ZX225 advantages:

Extremely smooth hydraulic control — preferred for precision work
Excellent operator comfort and cab visibility
Strong reliability reputation
Competitive fuel economy

Verdict: The CAT 325D2L is the preferred choice for owners prioritizing long-term durability, parts availability and resale value. Its combination of the proven C7.1 engine, extended service intervals and Cat‘s global support network makes it a standout choice for contractors who need a reliable, cost-effective machine for a wide range of applications. The long undercarriage provides confidence in uneven terrain that shorter-track competitors cannot match.

For owners who value the absolute lowest fuel consumption and advanced telematics out of the box, the Komatsu PC220-8 is worth consideration. For operators who prioritize hydraulic smoothness and cab comfort above all else, the Hitachi ZX225 is a strong alternative.
