2021 Sany SY415 Used Excavator 41 Ton Crawler for Sale

The SY415H is a 40–41.5 metric ton crawler excavator that occupies a critical niche in Sany’s product lineup. It is positioned above the SY365 (36-ton class) and below the SY500H (50-ton class), targeting the heavy production segment where machines are expected to handle demanding daily workloads in quarries, mines, and large-scale earthmoving projects. The machine is engineered with a “heavy-duty mining” design philosophy, incorporating reinforced structures and components intended to withstand the punishing conditions of continuous rock excavation and truck loading.

The “H” in SY415H denotes the heavy-duty mining configuration, distinguished from standard construction variants by strengthened undercarriage components, reinforced boom and stick structures, and a more robust cooling package optimized for high-ambient-temperature operation. The SY415H has been in production since approximately 2018, with the upgraded SY415H-S “National IV” model introduced around 2023 featuring a more powerful Cummins engine to meet stricter emission standards.

For used buyers, the most common variant encountered in the secondary market is the original SY415H equipped with the Isuzu 6UZ1 engine, as this version has the longest production run and widest availability.

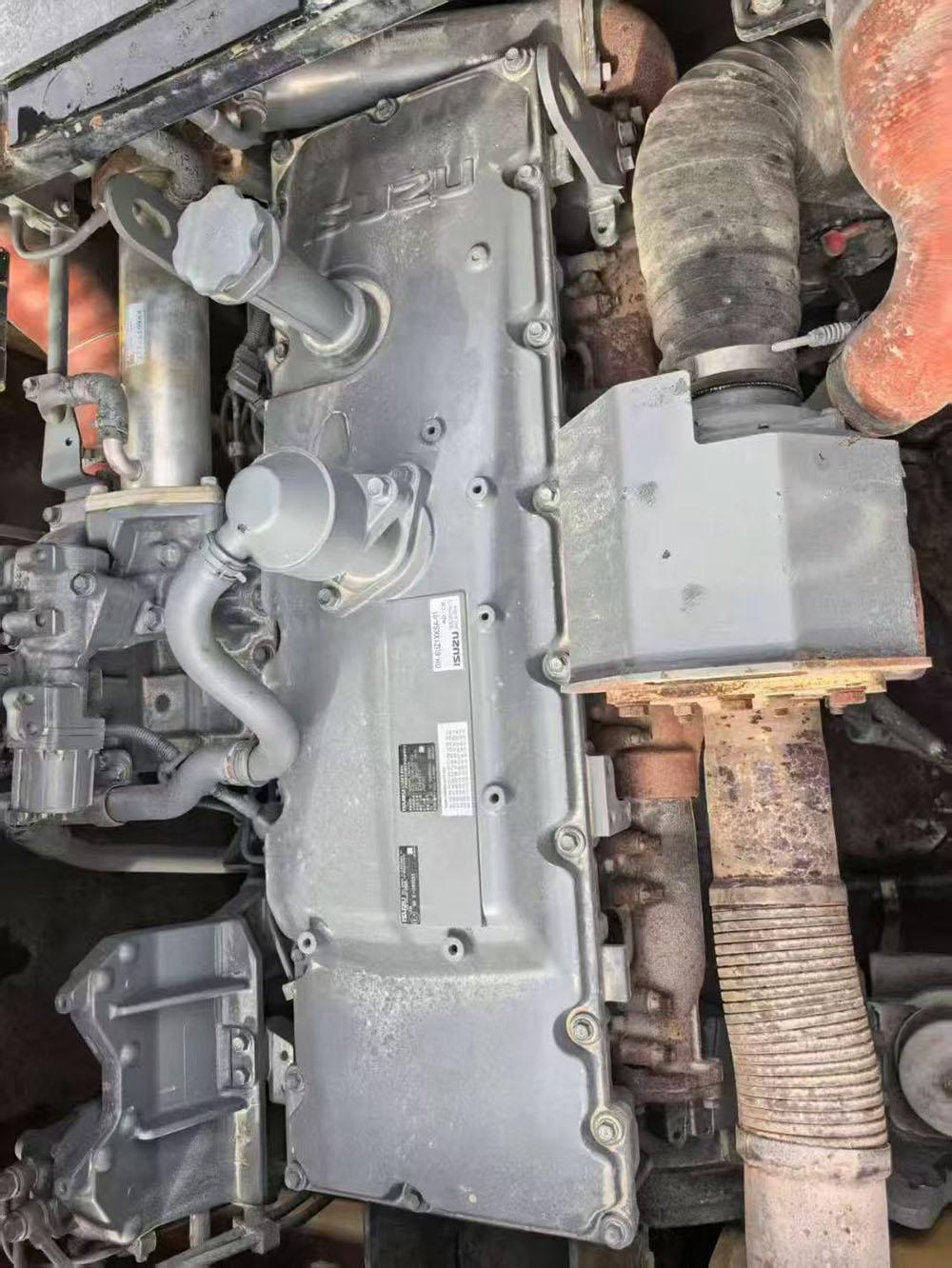

The SY415H is built around the ISUZU 6UZ1 diesel engine, a 9.84-liter, 6-cylinder, 4-stroke turbocharged powerplant that represents the reliability benchmark in the Asian heavy equipment industry. The engine delivers 257 kW (349 hp) at 2,000 rpm, with a substantial maximum torque output of 1,363 N·m at 1,500 rpm. For the later SY415H-S variant, Sany offers a custom Cummins L9 engine producing up to 272 kW (365 hp), providing roughly 9% more power than the original Isuzu configuration.

The machine’s operating weight is 41,500 kg (91,500 lb) with standard configuration, placing it firmly in the 40-ton class. Standard bucket capacity is 1.9 m³, with heavy-duty rock buckets available up to 2.2 m³ capacity. The bucket digging force (ISO) is rated at 247 kN, while the arm (stick) digging force is 218 kN.

In terms of working ranges, the SY415H achieves a maximum digging depth of 7,116 mm and a maximum reach at ground level of 10,953 mm. Maximum dumping height reaches 6,926 mm, and maximum digging height is approximately 10,000 mm. The machine features a swing speed of 8.3–9.7 rpm and dual travel speeds of 5.5 km/h (high) and 3.0 km/h (low). Fuel tank capacity is 646–690 L, providing extended operating range between refueling stops.

1. Impressive Longevity and Low Operational Costs

Perhaps the most compelling feature Sany emphasizes for the SY415H is its design life. The company claims a 25,000-hour design lifespan, which is 30% longer than previous models and 30% longer than comparable 40-ton class machines. This extended longevity is achieved through comprehensive testing systems and key component stress reduction—Sany states that critical components experience 15% less pressure compared to other 40-ton class machines but deliver significantly extended service life.

The maintenance proposition is equally attractive. Sany claims maintenance costs are reduced by 50% through durable filters and extended service intervals. For owners who plan to keep a machine for 8,000–10,000 operating hours, these savings represent substantial bottom-line benefits over the ownership period.

2. Proven Isuzu 6UZ1 Engine Reliability

The choice of the Isuzu 6UZ1 engine is arguably the SY415H’s single greatest asset from a reliability standpoint. Isuzu’s heavy-duty diesel engines have an established reputation for durability in demanding Asian and African markets where fuel quality cannot always be guaranteed. The 9.84-liter 6UZ1 is engineered to perform under extreme conditions with extended service life, and is widely used not only in excavators but also in heavy trucks and power generators. Multiple fleet operators have reported that the combination of Isuzu engines with Sany’s mainframes has proven highly reliable. As one plant director put it, “Their proven reliability combined with proven components such as Isuzu engines and Kawasaki hydraulics have never let us down”.

3. Optimized Hydraulic System and Fuel Efficiency

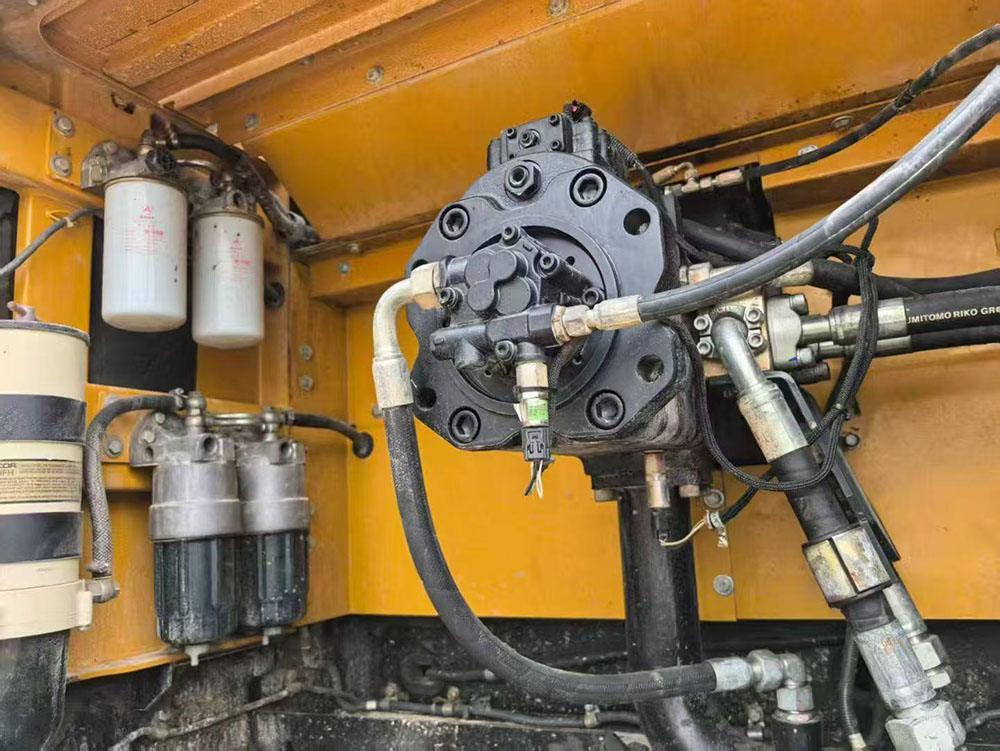

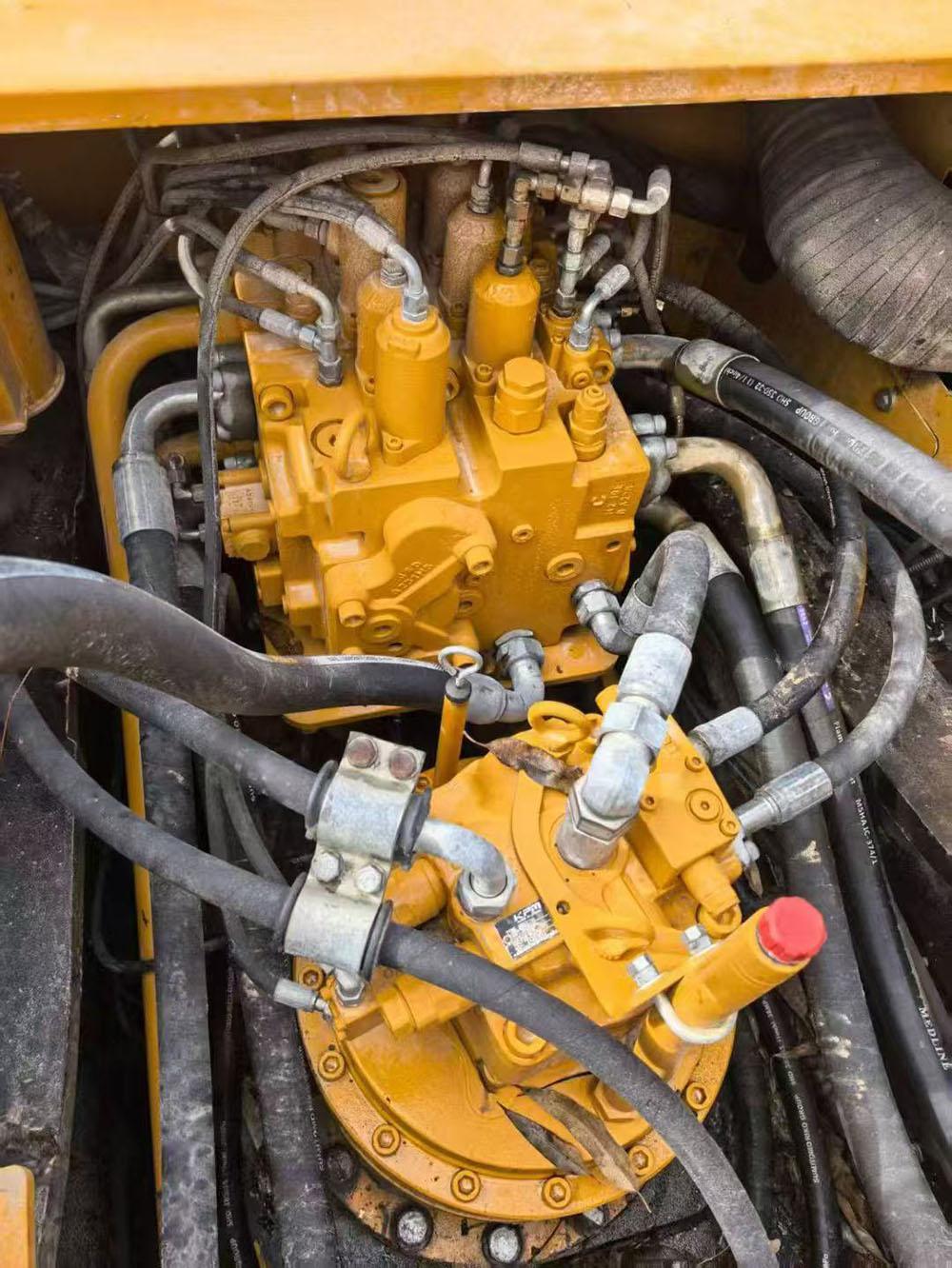

Sany has equipped the SY415H with what they describe as an “engine-pump-valve integrated dynamic optimization intelligent control system” that coordinates the engine, hydraulic pump, and main control valve operating points to achieve peak efficiency. The system automatically adjusts engine speed and pump displacement based on real-time load demands, optimizing fuel consumption across varying operating conditions. Compared with the previous generation, Sany claims excavating force increased by 10% and oil consumption reduced by more than 10%.

One independent user review confirmed these efficiency claims, describing the machine as having “super low fuel consumption, super strong digging force, and the chassis is super solid”.

4. Heavy-Duty Construction for Mining Environments

The machine is built with a reinforced X-shaped chassis structure and a durable undercarriage system featuring 9 track rollers per side and 2 carrier wheels per side. The SY415H incorporates over 20 optional working devices and a multi-stage reinforced fuel filter system specifically designed to protect the engine in dusty mining conditions where fuel contamination is a constant threat.

Aggregated user reviews from Chinese online platforms paint a generally favorable picture of the SY415H’s performance. One SY415H owner from Shaanxi Province, reporting after three years of ownership, stated that the engine power remains exceptionally strong and effective, the air conditioning performs well in hot summer conditions, and the steel plate quality is superior to other brands. Another review praising the machine noted it has “super low fuel consumption, super strong digging force, mining works equivalent to two 360-class machines”.

However, not all feedback is glowing. One operator noted that replacing the air filter element is “particularly troublesome” when it needs replacement, suggesting that some service access points could be better designed for field maintenance. Another reviewer noted difficulty sourcing filter elements locally, though this is a typical challenge for any brand outside its home market.

When evaluating the SY415H against established competitors in the 40-ton class—specifically the Caterpillar 336 and Komatsu PC400—the value equation depends heavily on what a buyer prioritizes.

A direct comparison analysis between the Sany 415 and Caterpillar 336 indicates that the Sany 415 track excavator offers advantages in initial purchase price and modern features, while the Caterpillar 336 provides advantages in brand reputation, resale value, and parts availability in certain markets. The Sany 415 uses an advanced hydraulic and powertrain system to provide powerful digging force and travel capability, enabling quick and efficient completion of various work tasks. It also features a chassis with good stability and a powerful powertrain system capable of maintaining stable operation across various complex terrain conditions, improving construction efficiency.

From a specification standpoint, the SY415H’s 247 kN bucket digging force compares favorably to the CAT 336D’s 210–222 kN range, giving the Sany a clear advantage in raw breakout power. However, the CAT’s hydraulic system is generally considered more refined for precision work requiring fine feathering control.

Long-term economics is where the equation gets interesting. The SY415H’s claimed 25,000-hour design life aligns with the service life expectations of premium brands. For used buyers who plan to keep a machine for 5,000–8,000 hours, the SY415H’s lower purchase price and reduced maintenance expenses can result in a lower total cost per hour than a comparable Cat or Komatsu unit with higher acquisition cost and similar parts expenses.

Parts availability remains the wild card. In regions with mature Cat or Komatsu dealer networks, parts availability for Sany can be less convenient, though Sany has been rapidly expanding its global parts distribution network, particularly in Africa, the Middle East, and Southeast Asia.
